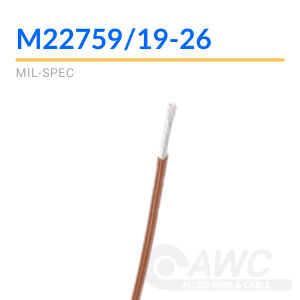

Approx LBS/MFT1.4
AWG Size26
Cond. MaterialSilver-Coated Copper Alloy (High Strength)
Conductor Stranding19/38
Insul. MaterialEthylene Tetrafluoroethylene (ETFE)
M27500 ComponentTH
Max O.D. (in)0.034
Max. Temp150C
M22759/19
M22759/19 Wire
Our M22759/19 wire is a highly durable Mil-Spec wire designed to be used in aircraft applications where weight, dimensional tolerance, and durability are a concern. This wire is constructed of silver-plated copper conductors and extruded ETFE insulation. This wire is lightweight and has high resistance to chemicals and radiation. It also has a temperature range of -55°C to +150°C and a voltage rating of 600V.
4 items

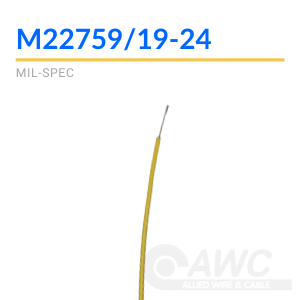

Approx LBS/MFT1.9
AWG Size24
Cond. MaterialSilver-Coated Copper Alloy (High Strength)
Conductor Stranding19/36
Insul. MaterialEthylene Tetrafluoroethylene (ETFE)
M27500 ComponentTH
Max O.D. (in)0.038
Max. Temp150C

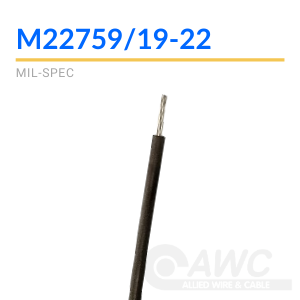

Approx LBS/MFT2.9
AWG Size22
Cond. MaterialSilver-Coated Copper Alloy (High Strength)
Conductor Stranding19/34
Insul. MaterialEthylene Tetrafluoroethylene (ETFE)
M27500 ComponentTH
Max O.D. (in)0.045
Max. Temp150C
Approx LBS/MFT4.6
AWG Size20
Cond. MaterialSilver-Coated Copper Alloy (High Strength)
Conductor Stranding19/32
Insul. MaterialEthylene Tetrafluoroethylene (ETFE)
M27500 ComponentTH
Max O.D. (in)0.053
Max. Temp150C
M22759/19 Mil-Spec Wire Specifications
M22759/19 Construction:
- Conductor: Silver-Plated Copper
- Insulation: Extruded Ethylene Tetrafluoroethylene (ETFE)
M22759/19 Ratings and Approvals:
- Voltage Rating: 600 Volts
- Temperature Rating: -55°C to +150°C (302°F)
- SAE: AS22759/19
