Approx LBS/MFT1.55
AWG Size26
Cond. MaterialNickel-Plated Copper
Conductor Stranding19/38
Insul. MaterialFluoropolymer (FP)/Polyimide (PI) Tapes
Jacket MaterialPolytetrafluoroethylene (PTFE) Tape
M27500 ComponentWK
Max O.D. (in)0.037
M22759/87

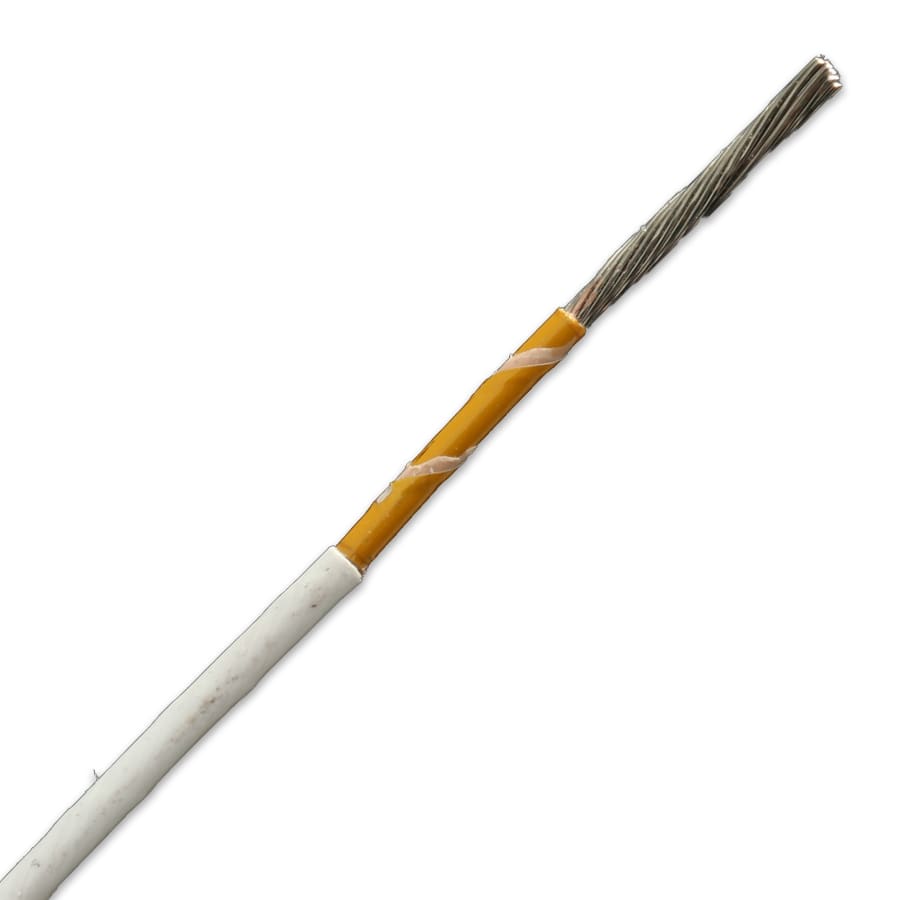

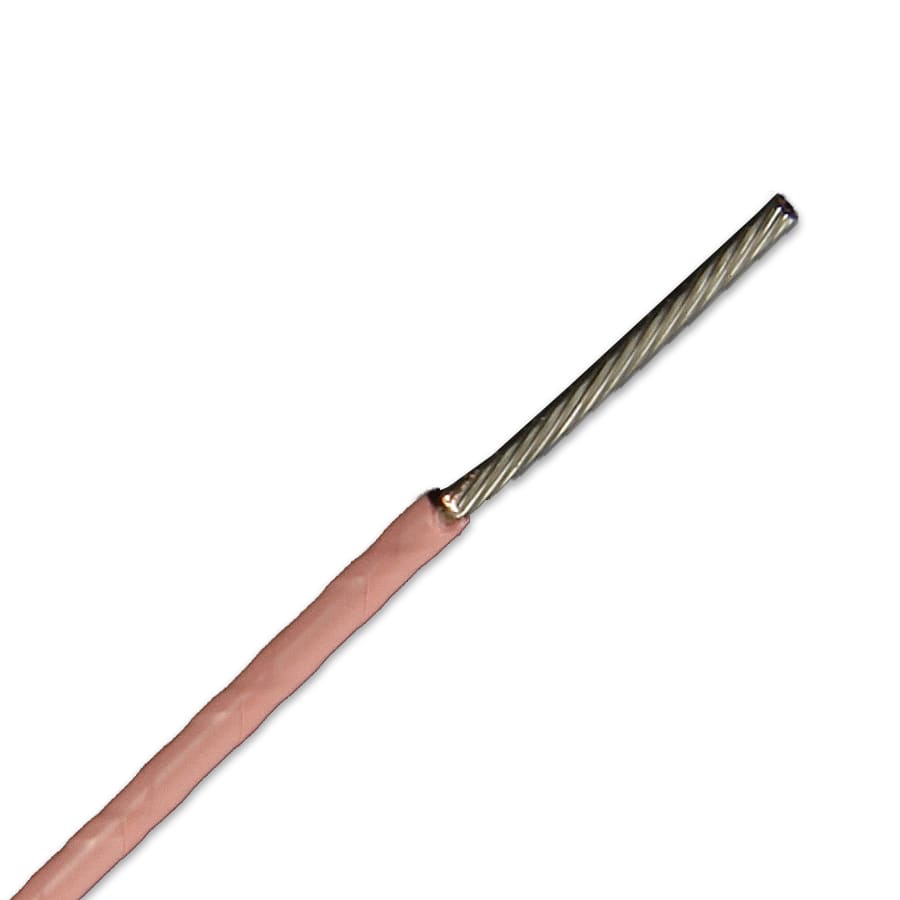

M22759/87 Wire
Our M22759/87 wire is a highly durable Mil-Spec wire designed to be used in aircraft applications where weight, dimensional tolerance, and durability are a concern. This wire is constructed of nickel-plated copper conductors and flouropolymer/polyamide tape insulation. This wire is lightweight and has high resistance to chemicals and radiation. It also has a maximum temperature of +260°C and a voltage rating of 600V.
18 items
Approx LBS/MFT2.15
AWG Size24
Cond. MaterialNickel-Plated Copper
Conductor Stranding19/36
Insul. MaterialFluoropolymer (FP)/Polyimide (PI) Tapes
Jacket MaterialPolytetrafluoroethylene (PTFE) Tape
M27500 ComponentWK
Max O.D. (in)0.042
Approx LBS/MFT3, 3.00
AWG Size22
Cond. MaterialNickel-Plated Copper
Conductor Stranding19/34
Insul. MaterialFluoropolymer (FP)/Polyimide (PI) Tapes
Jacket MaterialPolytetrafluoroethylene (PTFE) Tape
M27500 ComponentWK
Max O.D. (in)0.047
Approx LBS/MFT4.55
AWG Size20
Cond. MaterialNickel-Plated Copper
Conductor Stranding19/32
Insul. MaterialFluoropolymer (FP)/Polyimide (PI) Tapes
Jacket MaterialPolytetrafluoroethylene (PTFE) Tape
M27500 ComponentWK
Max O.D. (in)0.055
Approx LBS/MFT6.7, 6.70
AWG Size18
Cond. MaterialNickel-Plated Copper
Conductor Stranding19/30
Insul. MaterialFluoropolymer (FP)/Polyimide (PI) Tapes
Jacket MaterialPolytetrafluoroethylene (PTFE) Tape
M27500 ComponentWK
Max O.D. (in)0.065
Approx LBS/MFT0, 0.00
AWG Size16
Cond. MaterialNickel-Plated Copper
Conductor Stranding19/29
Insul. MaterialFluoropolymer (FP)/Polyimide (PI) Tapes
Jacket MaterialPolytetrafluoroethylene (PTFE) Tape
M27500 ComponentWK
Max O.D. (in)0.073
Approx LBS/MFT0, 0.00
AWG Size14
Cond. MaterialNickel-Plated Copper
Conductor Stranding19/27
Insul. MaterialFluoropolymer (FP)/Polyimide (PI) Tapes
Jacket MaterialPolytetrafluoroethylene (PTFE) Tape
M27500 ComponentWK
Max O.D. (in)0.086
Approx LBS/MFT0, 0.00
AWG Size12
Cond. MaterialNickel-Plated Copper
Conductor Stranding37/28
Insul. MaterialFluoropolymer (FP)/Polyimide (PI) Tapes
Jacket MaterialPolytetrafluoroethylene (PTFE) Tape
M27500 ComponentWK
Max O.D. (in)0.105
M22759/87 Mil-Spec Wire Specifications
M22759/87 Construction:
- Conductor: Nickel-Plated Copper
- Insulation: Fluoropolymer/Polyamide Tape
M22759/87 Ratings:
- Voltage Rating: 600 Volts
- Temperature Rating: 260°C
- SAE: AS22759/87
