DLO-2

DLO-2
$2,851.60 / 1000 FT
  • Amps: 190
  • Approx LBS/MFT: 293.00
  • AWG Size: 2
  • Cond. Material: Tinned Copper
  • Conductor Stranding: 161/24
  • CSA Type: RW90
  • Insul. Material: Ethylene Propylene Rubber (EPR)
  • Jacket Material: Chlorinated Polyethylene (CPE)
  • Jacket Thickness: 0.045
  • Max. Temp: 90C
  • Min. Temp: -40C
  • No. of Strands: 161
  • Nom. Insul. Thick. (in): 0.065
  • Nom. O.D. (in): 0.5020 +/- 5%
  • Strand Size: 24
  • UL Style: RHH/RHW
  • Voltage: 2000

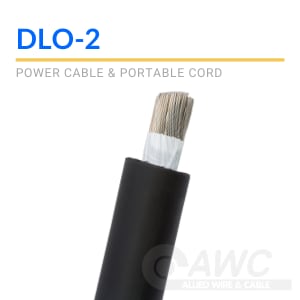

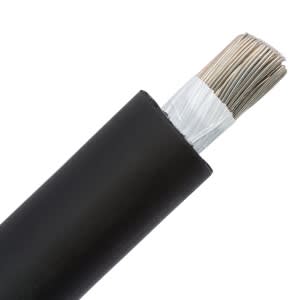

DLO-2 - 2 Gauge Diesel Locomotive Cable

Our DLO-2 2 AWG cable is part of our Power Cable and Portable Cord line. The DLO-2 cable is constructed of stranded tinned copper conductors, EPDM insulation, and a black CPE jacket. This durable cable has a maximum temperature of +90°C and is rated at 2000V. This cable's jacket is rated for continuous wet/dry exposure and resists oils, acids, alkalies, heat, and flame. This DLO cable is approved for use in diesel-electric locomotives, oil and gas drilling rigs, and more. It is also RoHS Compliant.
