Approx LBS/MFT114
AWG Size14

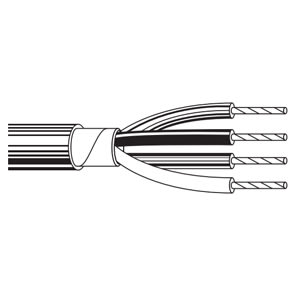

Color Code ChartRed, Green, White, Black
Cond. MaterialBare Copper
Conductor Stranding104/34
Insul. MaterialPolyvinylchloride (PVC)
Jacket MaterialPolyvinylchloride (PVC)
Jacket Thickness0.04
Speaker Connections, High-Flex Bi-Amp and Tri-Amp
4 items
Approx LBS/MFT205
AWG Size14

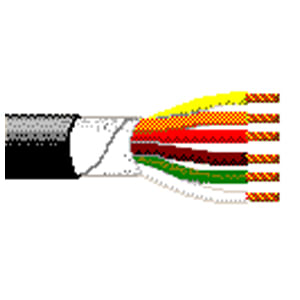

Color Code ChartBrown, Red, Orange, Yellow, Green, White, Blue, Black
Cond. MaterialBare Copper
Conductor Stranding104/34
Insul. MaterialPolyvinylchloride (PVC)
Jacket MaterialPolyvinylchloride (PVC)
Jacket Thickness0.04
Approx LBS/MFT96
AWG Size10
Color Code ChartBlack, White
Cond. MaterialBare High-conductivity ETP Copper
Conductor Stranding65/28
Insul. MaterialPolyvinylchloride (PVC)
Jacket MaterialPolyvinylchloride (PVC)
Jacket Thickness0.026
Approx LBS/MFT85
AWG Size10
Color Code ChartBlack, White
Cond. MaterialBare Copper
Conductor Stranding65/28
Insul. MaterialFlamarrest
Jacket MaterialFlamarrest
Jacket Thickness0.015
Belden High-Flex Bi-Amp and Tri-Amp Speaker Connections Specifications
High-Flex Bi-Amp and Tri-Amp Connections Construction:
- 4 AWG Cable:
- Conductor: Stranded Bare Copper, Cabled with Fillers
- Insulation: PVC
- Jacket: Overall Matte Black
- Paper Tape
- Color Code: 4 conductor = Red, Green, White, Black; 8 conductors = Brown, Red, Orange, Yellow, Green, White, Blue, Black
- 10 AWG Cable – Non-Plenum:
- Conductor: Stranded Bare High-Conductivity ETP Copper; Highly stranded for exceptional flexibility
- Insulation: High-Grade PVC
- Jacket: PVC (Available in Grey)
- RipCord
- Color Code: Black, White

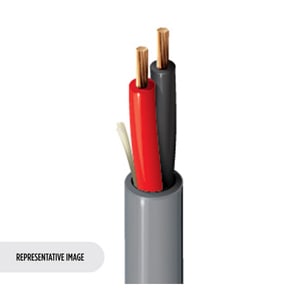

- 10 AWG Cable - Plenum:
- Conductor: Stranded Bare Copper, Cabled
- Insulation: Flamarrest
- Jacket: Natural Flamarrest
- RipCord
- Color Code: Black, White
High-Flex Bi-Amp and Tri-Amp Connections Ratings and Approvals:
- High flex cable
- 14 AWG Cable:
- Temperature Rating: 60°C
- 10 AWG Cable – Non-Plenum:
- NEC: CL2, Audio Use Only
- UL: UL 1581
- Temperature Rating: 75°C
- 10 AWG Cable – Plenum:
- NEC: CL2P, Audio Use Only
- Temperature Rating: 75°C
- Voltage Rating: 150V
