9L260XX Series 26 AWG

9 items

Belden Cable

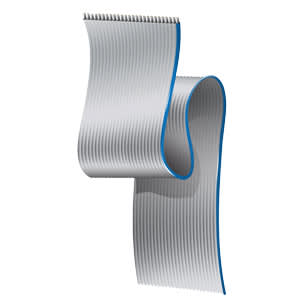

9L26010
AWG Size26
Cond. MaterialTinned Copper
Conductor Stranding7/34
CSA TypeAWM I A
Impedance (C-SC)90
Insul. MaterialPolyvinylchloride (PVC)
Max. Resistance @ 20C OHMS/MFT43O/1000 ft.
Max. Temp105C
Requires Quote per FT
Belden Cable

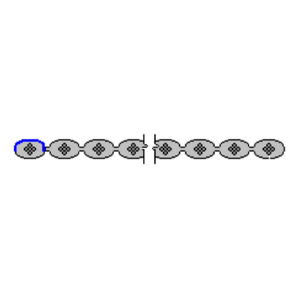

9L26014
AWG Size26
Cond. MaterialTinned Copper
Conductor Stranding7/34
CSA TypeAWM I A
Impedance (C-SC)90
Insul. MaterialPolyvinylchloride (PVC)
Max. Resistance @ 20C OHMS/MFT43O/1000 ft.
Max. Temp105C
Requires Quote
Belden Cable

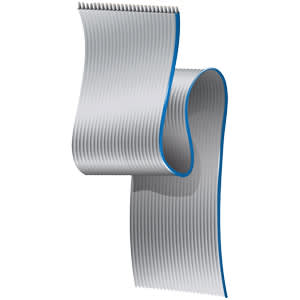

9L26016
AWG Size26
Cond. MaterialTinned Copper
Conductor Stranding7/34
CSA TypeAWM I A
Impedance (C-SC)90
Insul. MaterialPolyvinylchloride (PVC)
Max. Resistance @ 20C OHMS/MFT43O/1000 ft.
Max. Temp105C
Requires Quote per FT
Belden Cable

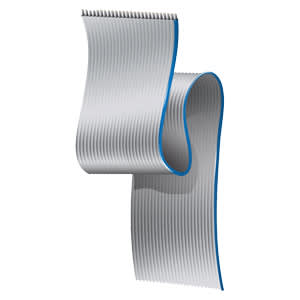

9L26020
AWG Size26
Cond. MaterialTinned Copper
Conductor Stranding7/34
CSA TypeAWM I A
Impedance (C-SC)90
Insul. MaterialPolyvinylchloride (PVC)
Max. Resistance @ 20C OHMS/MFT43O/1000 ft.
Max. Temp105C
Requires Quote
Belden Cable
9L26025
AWG Size26
Cond. MaterialTinned Copper
Conductor Stranding7/34
CSA TypeAWM I A
Impedance (C-SC)90
Insul. MaterialPolyvinylchloride (PVC)
Max. Resistance @ 20C OHMS/MFT43O/1000 ft.
Max. Temp105C
Requires Quote
Belden Cable
9L26026
AWG Size26
Cond. MaterialTinned Copper
Conductor Stranding7/34
CSA TypeAWM I A
Impedance (C-SC)90
Insul. MaterialPolyvinylchloride (PVC)
Max. Resistance @ 20C OHMS/MFT43O/1000 ft.
Max. Temp105C
Requires Quote per FT
Belden Cable

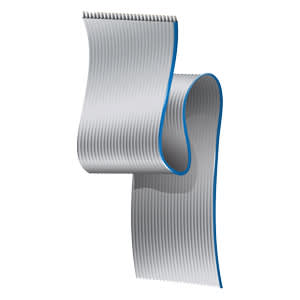

9L26034
AWG Size26
Cond. MaterialTinned Copper
Conductor Stranding7/34
CSA TypeAWM I A
Impedance (C-SC)90
Insul. MaterialPolyvinylchloride (PVC)
Max. Resistance @ 20C OHMS/MFT43O/1000 ft.
Max. Temp105C
Requires Quote per FT
Belden Cable
9L26040
AWG Size26
Cond. MaterialTinned Copper
Conductor Stranding7/34
CSA TypeAWM I A
Impedance (C-SC)90
Insul. MaterialPolyvinylchloride (PVC)
Max. Resistance @ 20C OHMS/MFT43O/1000 ft.
Max. Temp105C
Requires Quote per FT

Belden 9L280XX Series Gray Ribbon Cable Specifications

9L280XX Series Ribbon Cable Ratings and Approvals:

  • UL: File #E12683, Style 2651
  • CSA: File #LL7874, CSA AWM I A (105°C, 300V) FT1
  • Flammability Rating: Passes UL VW-1, CSA FT1
  • Temperature Rating: -40°C to 105°C
  • Voltage Rating: 300V RMS
  • Current Rating: 1A
  • Impedance: 105 Ohms

9L280XX Series Ribbon Cable Construction:

  • Conductor: 26 AWG Stranded Tinned Copper
  • Insulation: Gray Polyvinyl Chloride (PVC)
  • Pitch: .050″ ± .002″
  • Color Code: Gray with Red Polarity Stripe

9L280XX Series Cable Applications:

This planar cable may be used for general-purpose interconnect applications, internal interconnection wiring, and for the internal wiring of electronic equipment. The cable’s tear feature makes breakouts easy. Mass termination is also convenient with standard .100” contact IDC connectors. Flexibility makes for easy handling.
