CMR Cable, CMG FT4: Overall Shielded Twisted Pair

14 items

5541fe
Belden Cable
5541FE
Approx LBS/MFT23
AWG Size22
Color Code ChartBlack/Red, Black/White
Cond. MaterialBare Copper
Conductor Stranding7
Insul. MaterialPolyvinylchloride (PVC)
Jacket MaterialPolyvinylchloride (PVC)
Jacket Thickness0.015
Requires Quote per FT
Quote Only
5542fe
Belden Cable
5542FE
Approx LBS/MFT29
AWG Size22
Color Code ChartBlack/Red, Black/White, Black/Green
Cond. MaterialBare Copper
Conductor Stranding7
Insul. MaterialPolyvinylchloride (PVC)
Jacket MaterialPolyvinylchloride (PVC)
Jacket Thickness0.015
Requires Quote per FT
Quote Only
5543fe
Belden Cable
5543FE
Approx LBS/MFT34
AWG Size22
Color Code ChartBlack/Red, Black/White, Black/Green, Black/Blue
Cond. MaterialBare Copper
Conductor Stranding7
Insul. MaterialPolyvinylchloride (PVC)
Jacket MaterialPolyvinylchloride (PVC)
Jacket Thickness0.015
Requires Quote per FT
Quote Only
5545fe
Belden Cable
5545FE
Approx LBS/MFT48
AWG Size22
Color Code ChartBlack/Red, Black/White, Black/Green, Black/Blue, Black/Yellow, Black/Brown
Cond. MaterialBare Copper
Conductor Stranding7
Insul. MaterialPolyvinylchloride (PVC)
Jacket MaterialPolyvinylchloride (PVC)
Jacket Thickness0.015
Requires Quote per FT
Quote Only
5561fe
Belden Cable
5561FE
Approx LBS/MFT22
AWG Size22
Color Code ChartBlack/Red, Black/White
Cond. MaterialBare Copper
Conductor Strandingsolid
Insul. MaterialPolyvinylchloride (PVC)
Jacket MaterialPolyvinylchloride (PVC)
Jacket Thickness0.015
Requires Quote
Quote Only
5562fe
Belden Cable
5562FE
Approx LBS/MFT28
AWG Size22
Color Code ChartBlack/Red, Black/White, Black/Green
Cond. MaterialBare Copper
Conductor Strandingsolid
Insul. MaterialPolyvinylchloride (PVC)
Jacket MaterialPolyvinylchloride (PVC)
Jacket Thickness0.015
Requires Quote
Quote Only

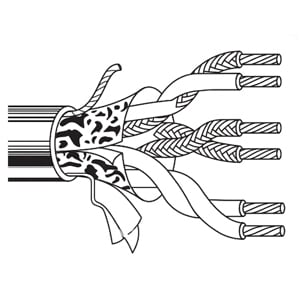

5563fe
Belden Cable
5563FE
Approx LBS/MFT33
AWG Size22
Color Code ChartBlack/Red, Black/White, Black/Green, Black/Blue
Cond. MaterialBare Copper
Conductor Strandingsolid
Insul. MaterialPolyvinylchloride (PVC)
Jacket MaterialPolyvinylchloride (PVC)
Jacket Thickness0.015
Requires Quote
Quote Only
5441fe
Belden Cable
5441FE
Approx LBS/MFT30.00
AWG Size20
Color Code ChartBlack/Red, Black/White
Cond. MaterialBare Copper
Conductor Stranding7
Insul. MaterialPolyvinylchloride (PVC)
Jacket MaterialPolyvinylchloride (PVC)
Jacket Thickness0.015
Requires Quote per FT
Quote Only

Belden Overall Shielded CMR Cable with Twisted Pairs (CEC CMG FT4/NEC CMR) Specifications

Shielded CMR Twisted Pair Cable Construction:

  • Conductors: Solid or Stranded Bare Copper
  • Insulation: PVC
  • Configuration: Conductors Twisted into Pairs, Multiple Pairs Twisted Together
  • Shield: Overall Beldfoil (Foil Side Out) with Drain Wire
  • Jacket: PVC
  • Jacket Color: Gray
  • RipCord
  • Sequential Footage Markings Every 2 ft.

CMR Cable Ratings and Approvals:

  • NEC Rating: CMR
  • CEC Rating: CMG FT4
  • NEC Article: 800
  • Voltage Rating: 300V
  • Temperature Rating: 75°C

Shielded CMR Twisted Pair Cable Applications:

  • Commercial Use
  • Security Systems
  • Intercom and PA Systems
  • Sound and Audio Systems
  • Power-Limited Controls
