55A0114 - M22759/33

The 55A0114 Tyco Raychem Spec 55 wire is a highly durable wire designed to be used as hook-up wire in applications where high temperatures, smoke emissions, and flammability are a concern. This wire is constructed of silver-coated, high-strength copper alloy conductors and XL-ETFE insulation. This wire also has a maximum temperature of +200°C and a voltage rating of 600V.

6 items

55a0114-30
55A0114-30
Approx LBS/MFT0.66
AWG Size30
Cond. MaterialSilver Plated High-Strength Copper Alloy, Silver-Plated High-Strength Copper Alloy
Conductor Stranding7/38
Insul. MaterialCross-Linked Ethylene Tetrafluoroethylene (XL-ETFE)
Max. Temp200C
Mil-SpecM22759/33
Min. Temp-65C
Requires Quote
55a0114-28
55A0114-28
Approx LBS/MFT0.91
AWG Size28
Cond. MaterialSilver Plated High-Strength Copper Alloy, Silver-Plated High-Strength Copper Alloy
Conductor Stranding7/38
Insul. MaterialCross-Linked Ethylene Tetrafluoroethylene (XL-ETFE)
Max. Temp200C
Mil-SpecM22759/33
Min. Temp-65C
Requires Quote
55a0114-26
55A0114-26
Approx LBS/MFT1.4
AWG Size26
Cond. MaterialSilver Plated High-Strength Copper Alloy, Silver-Plated High-Strength Copper Alloy
Conductor Stranding19/38
Insul. MaterialCross-Linked Ethylene Tetrafluoroethylene (XL-ETFE)
Max. Temp200C
Mil-SpecM22759/33
Min. Temp-65C
Requires Quote
55a0114-24

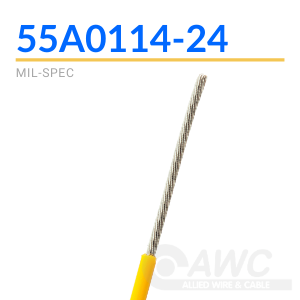

55A0114-24
Approx LBS/MFT2
AWG Size24
Cond. MaterialSilver Plated High-Strength Copper Alloy, Silver-Plated High-Strength Copper Alloy
Conductor Stranding19/36
Insul. MaterialCross-Linked Ethylene Tetrafluoroethylene (XL-ETFE)
Max. Temp200C
Mil-SpecM22759/33
Min. Temp-65C
Requires Quote per FT
55a0114-22
55A0114-22
Approx LBS/MFT2.8
AWG Size22
Cond. MaterialSilver Plated High-Strength Copper Alloy, Silver-Plated High-Strength Copper Alloy
Conductor Stranding19/34
Insul. MaterialCross-Linked Ethylene Tetrafluoroethylene (XL-ETFE)
Max. Temp200C
Mil-SpecM22759/33
Min. Temp-65C
Requires Quote
55a0114-20

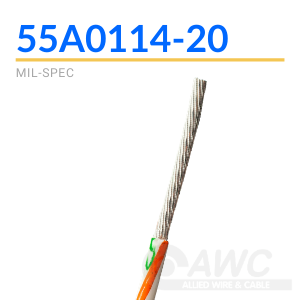

55A0114-20
Approx LBS/MFT4.3
AWG Size20
Cond. MaterialSilver Plated High-Strength Copper Alloy, Silver-Plated High-Strength Copper Alloy
Conductor Stranding19/32
Insul. MaterialCross-Linked Ethylene Tetrafluoroethylene (XL-ETFE)
Max. Temp200C
Mil-SpecM22759/33
Min. Temp-65C
Requires Quote

55A0114 Tyco Raychem Spec 55 (M22759/33) Specifications

55A0114 Spec 55 Construction:

  • Conductor: Silver-coated high-strength alloy
  • Insulation: Radiation-crosslinked, modified ETFE
  • Wall Thickness: 0.152 mm (0.006 in.)
  • Wall Construction: Single-wall

44A0114 Raychem Spec 55 Ratings:

  • Min Temperature: - 65°C
  • Max Temperature: 200°C
  • Voltage: 600 Volts

55A0114 Raychem Spec 55 is classified as light weight wire and directly crosses with M22759/33 Mil-Spec Wire.
