M24643/33 LS2SWU, LS2SWUA

MIL-DTL-24643/33 (LS2SWU, LS2SWUA)

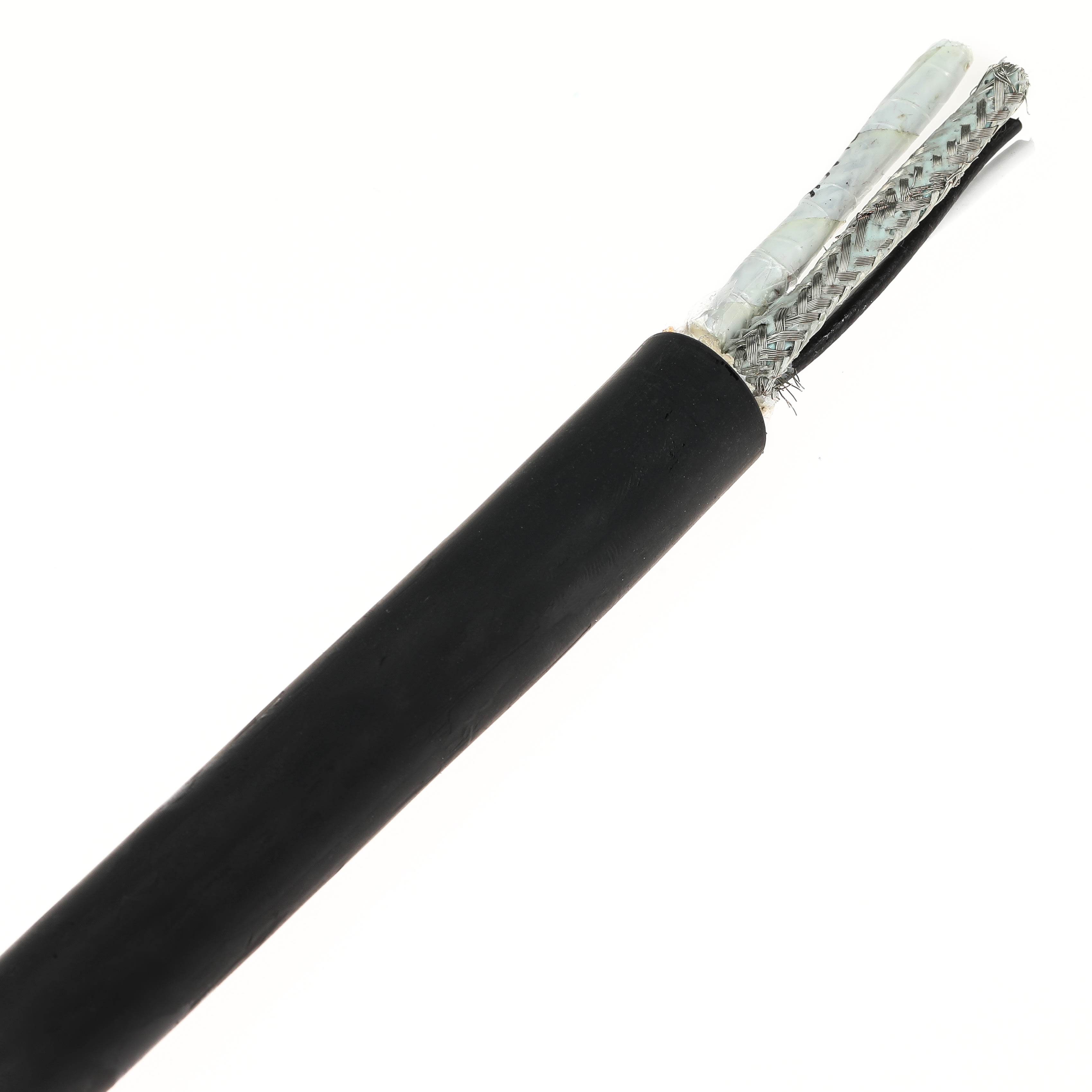

The M24643/33 cable is a low-smoke, zero-halogen shipboard cable. It is suitable for watertight, non-flexing service. This Mil-Spec cable features paired and stranded tinned copper conductors, Cross-Linked Polyethylene (XLPE) insulation, and an LSZH cross-linked Polyolefin (XLPO) jacket. This cable also has individually shielded pairs and an armored option. It is suitable for use in shipboard combat systems, interior communications, lighting, and power applications that do not exceed 600V. The Mil-DTL-24643 Mil-Spec covers cables suitable for use in shipboard, communications, instrumentation, and electronic applications.

18 items

ls2swu-1
LS2SWU-1
Approx LBS/MFT103.00
AWG Size18
Cond. MaterialTinned Copper
Conductor Stranding7/.0152
Insul. MaterialCross-Linked Polyethylene (XLPE)
Jacket MaterialHalogen-Free (LSZH) Cross-Linked Polyolefin (XLPO)
Max O.D. (in)0.255
Metal TubesA
Requires Quote per FT
ls2swu-12
LS2SWU-12
Approx LBS/MFT0.00
AWG Size18
Cond. MaterialTinned Copper
Conductor Stranding7/.0152
Insul. MaterialCross-Linked Polyethylene (XLPE)
Jacket MaterialHalogen-Free (LSZH) Cross-Linked Polyolefin (XLPO)
Max O.D. (in)1.200
Metal TubesL
Requires Quote per FT
ls2swu-19
LS2SWU-19
Approx LBS/MFT0.00
AWG Size18
Cond. MaterialTinned Copper
Conductor Stranding7/.0152
Insul. MaterialCross-Linked Polyethylene (XLPE)
Jacket MaterialHalogen-Free (LSZH) Cross-Linked Polyolefin (XLPO)
Max O.D. (in)1.380
Metal TubesM
Requires Quote per FT
ls2swu-24
LS2SWU-24
Approx LBS/MFT0.00
AWG Size18
Cond. MaterialTinned Copper
Conductor Stranding7/.0152
Insul. MaterialCross-Linked Polyethylene (XLPE)
Jacket MaterialHalogen-Free (LSZH) Cross-Linked Polyolefin (XLPO)
Max O.D. (in)1.590
Metal TubesP
Requires Quote per FT
ls2swu-3
LS2SWU-3
Approx LBS/MFT0.00
AWG Size18
Cond. MaterialTinned Copper
Conductor Stranding7/.0152
Insul. MaterialCross-Linked Polyethylene (XLPE)
Jacket MaterialHalogen-Free (LSZH) Cross-Linked Polyolefin (XLPO)
Max O.D. (in)0.710
Metal TubesD
Requires Quote per FT
ls2swu-30
LS2SWU-30
Approx LBS/MFT0.00
AWG Size18
Cond. MaterialTinned Copper
Conductor Stranding7/.0152
Insul. MaterialCross-Linked Polyethylene (XLPE)
Jacket MaterialHalogen-Free (LSZH) Cross-Linked Polyolefin (XLPO)
Max O.D. (in)1.760
Metal TubesS
Requires Quote per FT
ls2swu-37
LS2SWU-37
Approx LBS/MFT0.00
AWG Size18
Cond. MaterialTinned Copper
Conductor Stranding7/.0152
Insul. MaterialCross-Linked Polyethylene (XLPE)
Jacket MaterialHalogen-Free (LSZH) Cross-Linked Polyolefin (XLPO)
Max O.D. (in)1.870
Metal TubesS
Requires Quote per FT
ls2swu-61
LS2SWU-61
Approx LBS/MFT0.00
AWG Size18
Cond. MaterialTinned Copper
Conductor Stranding7/.0152
Insul. MaterialCross-Linked Polyethylene (XLPE)
Jacket MaterialHalogen-Free (LSZH) Cross-Linked Polyolefin (XLPO)
Max O.D. (in)2.300
Metal TubesW
Requires Quote

MIL-DTL-24643/33 LS2SWU, LS2SWUA Mil-Spec Shipboard Cable Specifications

M24643/33 Construction:

  • Conductor: Stranded Tinned Copper, per ASTM B286
  • Insulation: Cross-Linked Polyethylene (XLPE)
  • Jacket: Low-Smoke, Zero-Halogen (LSZH) Cross-Linked Polyolefin (XLPO) (with surface markings)
  • Shield: Tinned Copper Braid, pairs individually shielded
  • Armor (LS2SWUA): Aluminum Braid

M24643/33 Ratings and Approvals:

  • Mil-Spec:
  • Navy Shipboard Spec:
    • LS2SWA (armored)
    • LS2SWAU (unarmored)
  • Voltage Rating: 600V
  • Nom. Impedance: 75 ohm
