MIL-DTL-24643/50 (LSFNW, LSFNWA)

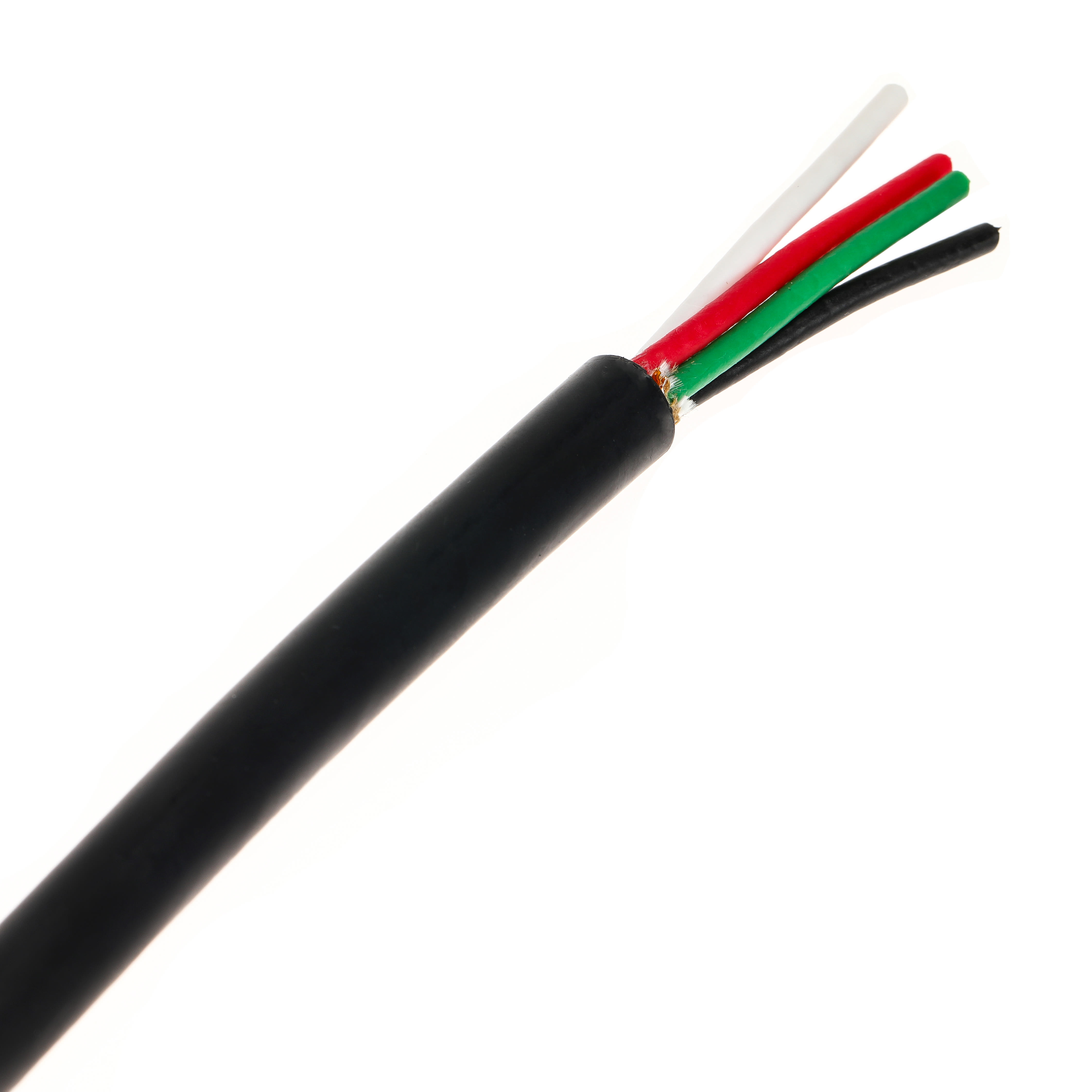

The M24643/50 cable is a low-smoke, zero-halogen shipboard cable. It is suitable for non-watertight, non-flexing services. This Mil-Spec cable features stranded bare copper conductors, Cross-Linked Polyethylene (XLPE) or EPR insulation, and an LSZH cross-linked Polyolefin (XLPO) jacket. This cable is ideal for use in shipboard combat systems, interior communications, and lighting and power applications except where unusual circuit parameters require a special type of cable. The Mil-DTL-24643 Mil-Spec covers cables suitable for use in shipboard, communications, instrumentation, and electronic applications.

8 items

  • LSFNW-3
    $0.00 / 100 FT
    • Ampacity (50C): 10
    • Approx LBS/MFT: 0.00
    • AWG Size: 16
    Order
    Add to List
  • LSFNWA-3
    $0.00 / 100 FT
    • Ampacity (50C): 10
    • Approx LBS/MFT: 0.00
    • Armor Material: Aluminum Braid
    Order
    Add to List
  • LSFNW-4
    $0.00 / 100 FT
    • Ampacity (50C): 17
    • Approx LBS/MFT: 0.00
    • AWG Size: 14
    Order
    Add to List
  • LSFNWA-4
    $0.00 /
    • Ampacity (50C): 17
    • Approx LBS/MFT: 0.00
    • Armor Material: Aluminum Braid
    Order
    Add to List
  • LSFNW-9
    $0.00 / 100 FT
    • Ampacity (50C): 36
    • Approx LBS/MFT: 0.00
    • AWG Size: 10
    Order
    Add to List
  • LSFNWA-9
    $0.00 / 100 FT
    • Ampacity (50C): 36
    • Approx LBS/MFT: 0.00
    • Armor Material: Aluminum Braid
    Order
    Add to List
  • LSFNW-23
    $0.00 / 100 FT
    • Ampacity (50C): 64
    • Approx LBS/MFT: 0.00
    • AWG Size: 7
    Order
    Add to List
  • LSFNWA-23
    $0.00 / 100 FT
    • Ampacity (50C): 64
    • Approx LBS/MFT: 0.00
    • Armor Material: Aluminum Braid
    Order
    Add to List

MIL-C-24643/50 (LSFNW, LSFNWA) Mil-Spec Shipboard Cable Specifications

M24643/50 Construction:

  • Conductor: Stranded Bare Copper, Class B stranding per ASTM B8
    • With an opaque white separator
  • Insulation: Cross-Linked Polyethylene (XLPE)
  • Jacket: Low-Smoke, Zero-Halogen (LSZH) Cross-Linked Polyolefin (XLPO) with surface markings
  • Armor (LSFNWA): Aluminum Braid

M24643/50 Ratings and Approvals:

  • Mil-Spec:
  • Navy Shipboard Spec:
    • LSFNWA (armored)
    • LSFNW (unarmored)
  • Voltage Rating: 1000V
