M24643/51 LSMNW, LSMNWA

MIL-DTL-24643/51 (LSMNW, LSMNWA)

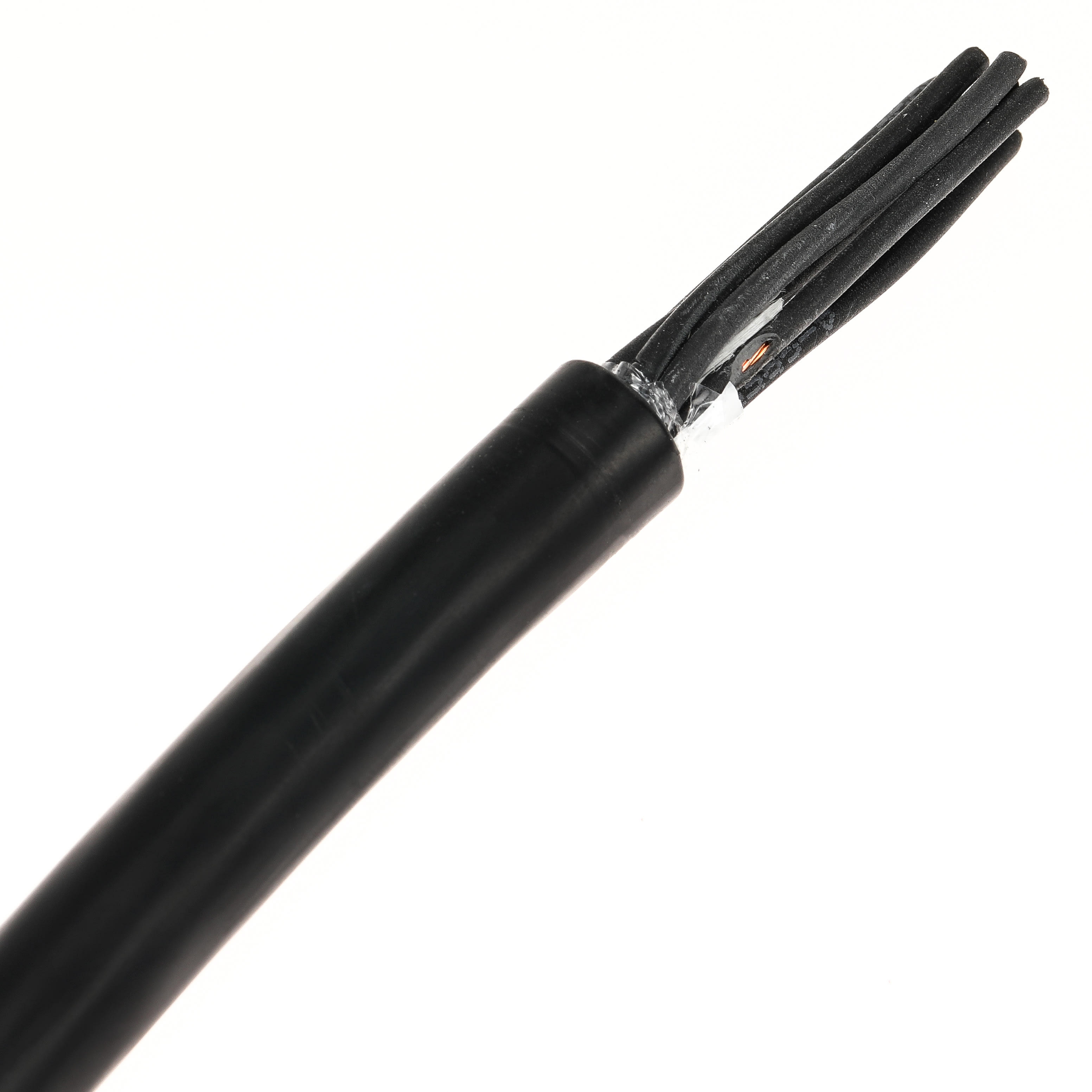

The M24643/51 cable is a low-smoke, zero-halogen shipboard cable. It is suitable for non-watertight, non-flexing services. This Mil-Spec cable features stranded bare copper conductors, Cross-Linked Polyethylene (XLPE) insulation, and an LSZH cross-linked Polyolefin (XLPO) jacket. This cable is ideal for use in shipboard combat systems, interior communications, and lighting and power applications that do not exceed 1000V. However, this cable shouldn't be used where a watertight deck or bulkhead below flooding water level II (FWL-II) is penetrated. The Mil-DTL-24643 Mil-Spec covers cables suitable for use in shipboard, communications, instrumentation, and electronic applications.

16 items

lsmnw-10
LSMNW-10
Ampacity (50C)9/6, 9/6/2024 12:00:00 AM
Approx LBS/MFT0.00
AWG Size18
Cond. MaterialBare Copper
Conductor Stranding7/.0152
Insul. MaterialCross-Linked Polyethylene (XLPE)
Jacket MaterialHalogen-Free (LSZH) Cross-Linked Polyolefin (XLPO)
Max O.D. (in)0.495
Requires Quote per FT
lsmnw-14
LSMNW-14
Ampacity (50C)9/6, 9/6/2024 12:00:00 AM
Approx LBS/MFT0.00
AWG Size18
Cond. MaterialBare Copper
Conductor Stranding7/.0152
Insul. MaterialCross-Linked Polyethylene (XLPE)
Jacket MaterialHalogen-Free (LSZH) Cross-Linked Polyolefin (XLPO)
Max O.D. (in)0.535
Requires Quote per FT
lsmnw-19
LSMNW-19
Ampacity (50C)9/6, 9/6/2024 12:00:00 AM
Approx LBS/MFT0.00
AWG Size18
Cond. MaterialBare Copper
Conductor Stranding7/.0152
Insul. MaterialCross-Linked Polyethylene (XLPE)
Jacket MaterialHalogen-Free (LSZH) Cross-Linked Polyolefin (XLPO)
Max O.D. (in)0.590
Requires Quote per FT
lsmnw-24
LSMNW-24
Ampacity (50C)9/5, 9/5/2024 12:00:00 AM
Approx LBS/MFT0.00
AWG Size18
Cond. MaterialBare Copper
Conductor Stranding7/.0152
Insul. MaterialCross-Linked Polyethylene (XLPE)
Jacket MaterialHalogen-Free (LSZH) Cross-Linked Polyolefin (XLPO)
Max O.D. (in)0.685
Requires Quote per FT
lsmnw-30
LSMNW-30
Ampacity (50C)9/5, 9/5/2024 12:00:00 AM
Approx LBS/MFT0.00
AWG Size18
Cond. MaterialBare Copper
Conductor Stranding7/.0152
Insul. MaterialCross-Linked Polyethylene (XLPE)
Jacket MaterialHalogen-Free (LSZH) Cross-Linked Polyolefin (XLPO)
Max O.D. (in)0.725
Requires Quote per FT
lsmnw-37
LSMNW-37
Ampacity (50C)9/5, 9/5/2024 12:00:00 AM
Approx LBS/MFT0.00
AWG Size18
Cond. MaterialBare Copper
Conductor Stranding7/.0152
Insul. MaterialCross-Linked Polyethylene (XLPE)
Jacket MaterialHalogen-Free (LSZH) Cross-Linked Polyolefin (XLPO)
Max O.D. (in)0.785
Requires Quote
lsmnw-44
LSMNW-44
Ampacity (50C)9/4, 9/4/2024 12:00:00 AM
Approx LBS/MFT0.00
AWG Size18
Cond. MaterialBare Copper
Conductor Stranding7/.0152
Insul. MaterialCross-Linked Polyethylene (XLPE)
Jacket MaterialHalogen-Free (LSZH) Cross-Linked Polyolefin (XLPO)
Max O.D. (in)0.890
Requires Quote
lsmnw-7
LSMNW-7
Ampacity (50C)9/6, 9/6/2024 12:00:00 AM
Approx LBS/MFT0.00
AWG Size18
Cond. MaterialBare Copper
Conductor Stranding7/.0152
Insul. MaterialCross-Linked Polyethylene (XLPE)
Jacket MaterialHalogen-Free (LSZH) Cross-Linked Polyolefin (XLPO)
Max O.D. (in)0.400
Requires Quote per FT

MIL-C-24643/51 (LSMNW, LSMNWA) Mil-Spec Shipboard Cable Specifications

M24643/51 Construction:

  • Conductor: Stranded Bare Copper, Class B stranding per ASTM B8
    • With an opaque white separator
  • Insulation: Cross-Linked Polyethylene (XLPE)
  • Jacket: Low-Smoke, Zero-Halogen (LSZH) Cross-Linked Polyolefin (XLPO) with surface markings
  • Armor (LSMNWA): Aluminum Braid

M24643/51 Ratings and Approvals:

  • Mil-Spec:
    • MIL-DTL-24643
    • MIL-I-45208A
    • MIL-STD-790
  • Navy Shipboard Spec:
    • LSMNWA (armored)
    • LSMNW (unarmored)
  • Voltage Rating: 1000V
