Belden 8V280XX Series Vari-Twist Flat Cable Specifications

8V280XX Vari-Twist Cable Ratings and Approvals:

  • UL: File #E12683, Style 20468
  • Flammability Rating: UL VW1, IEEE 383-1974, 70,000 BTU
  • Temperature Rating: -70°C to 150°C
  • Voltage Rating: 150V RMS
  • Current: 1A
  • Impedance: 145 Ohms Balanced, 130 Ohms Unbalanced

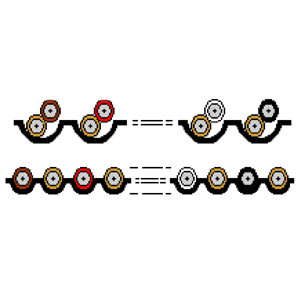

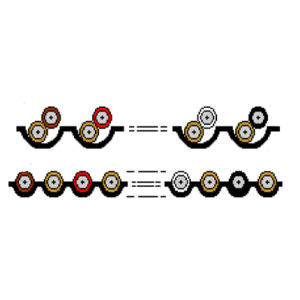

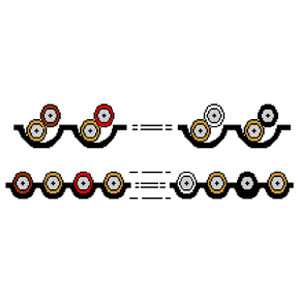

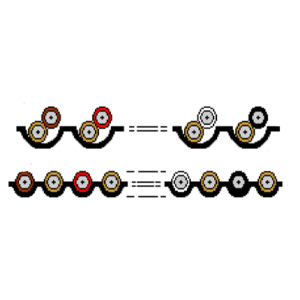

8V280XX Vari-Twist Cable Construction:

  • Conductor: 28 AWG Stranded Silver-Plated Copper
  • Insulation: Color-Coded FEP
  • Substrate: Clear FEP
  • Components: 18” of Twisted Pairs, 2” Flat Section
  • Pitch: Twisted Pair Centers = .100” Nom.; Flat Conductor Centers = .050″ ± .005″
  • Color Code: Each pair has one tan and one color-coded conductor. Color pairs for each terminating section: Brown/Tan, Red/Tan, Orange/Tan, Yellow/Tan, Green/Tan, Blue/Tan, Purple/Tan, Gray/Tan, White/Tan, Black/Tan. The sequence repeats as necessary.

8V280XX Cable Applications:

This ribbon cable may be used for the internal wiring of electronic equipment or appliances. It is appropriate for low and high-temperature applications, as well as low-out-gassing applications. It is also suitable for applications requiring chemical resistance, and for low outgassing applications. Its twisted construction is designed to reduce noise for applications where crosstalk is a concern.
