Times Microwave

TC-240-SM-RA-SS-D

TC-240-SM-RA-SS-D
0.00 /
TC-240-SM-RA-SS-D
  • Connector Type: Straight
  • Contact Attach (Inner): Solder
  • Contact Attach (Outer): Crimp
  • Coupling Nut: Hex
  • Finish of Body: Stainless Steel
  • Finish of Pin: Gold
  • Interface: SMA
  • Length (in): 1.09
  • Max. Frequency: 6.00
  • Nom. Imp.: 50.00
  • VSWR Freq. (GHz): <1.35:1 (6)
  • Weight per piece (lbs): 0.02
  • Width (in): 0.78

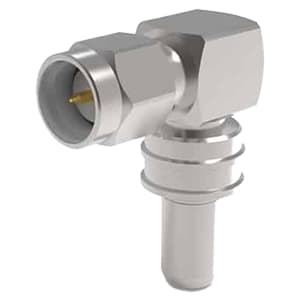

TC-240-SM-RA-SS-D — SMA Male Right Angle Connector

Need a connector for a tight RF space? The TC-240-SM-RA-SS-D SMA Male Straight Connector from Allied Wire & Cable is your answer. Rated for up to 6 GHz, it's perfect for high-frequency setups that need reliable performance. With a 50 Ohm impedance and a VSWR below 1.35:1, your signals will stay crisp and steady. The straight design and hex nut make it simple to install, using a solder inner contact and crimp outer contact for a secure fit. At just 0.019 lbs, it's super light yet tough, with a stainless steel finish and gold pin to resist corrosion and maintain conductivity. Built for 250-series cables, this SMA male plug is a smart pick. Order the TC-240-SM-RA-SS-D from Allied Wire & Cable today and keep your RF system running strong!
