Approx LBS/MFT36.5
AWG Size26
Cond. MaterialTin Plated Copper
Conductor Stranding19/38
Insul. MaterialExtruded Polyethylene
Jacket ColorMatte Black
Jacket MaterialFR LSZH Cablethane
Jacket Thickness0.026

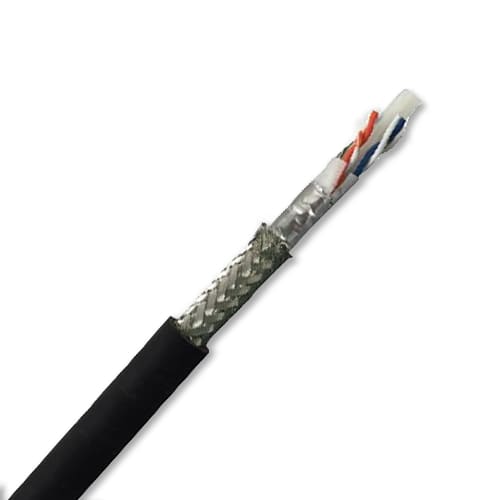

Defense Link
Allied Wire and Cable proudly offers Defense Link Cables, an innovative solution crafted to meet the stringent requirements of modern defense and military applications. These cables are not only a benchmark for high-speed data transmission with rates up to 10 gigabits but also bring a fusion of features ensuring unmatched performance and reliability.
8 items
Approx LBS/MFT53
AWG Size24
Cond. MaterialTin Plated Copper
Conductor Stranding7/32
Insul. MaterialExtruded Polyethylene
Jacket ColorMatte Black
Jacket MaterialExtruded FR LSZH Polyurethane
Jacket Thickness0.035
Approx LBS/MFT25.2
AWG Size26
Cond. MaterialTin Plated Copper
Conductor Stranding19/38
Insul. MaterialExtruded Polyethylene
Jacket ColorMatte Black
Jacket MaterialExtruded FR Cablethane
Jacket Thickness0.040
AWG Size1. 28 AWG, 2. 26 AWG
Cond. MaterialTin Plated Copper
Conductor Stranding1. 7.36, 2. 19/34
Insul. MaterialExtruded ETFE
Jacket ColorMatte Black
Jacket MaterialCablethane
Max. Temp90C
Min. Temp-55C
AWG Size28 AWG (All Components)
Cond. MaterialSilver Plated Alloy (All Components)
Conductor Stranding7/36 (All Components)
Insul. MaterialExtruded ETFE
Jacket ColorMatte Black
Jacket MaterialCablethane
Max. Temp90C
Min. Temp-55C
Approx LBS/MFT29.8
AWG Size1. 24 AWG x2, 2. 28 AWG x1, 3. 28 AWG x1
Cond. MaterialSilver Plated High Strength Copper Alloy (All Components)
Conductor Stranding1. 19/36, 2. 7/36, 3. 7/36
Drain Wire28 AWG Tin Plated Copper between shield material 1 & 2
Insul. MaterialExtruded FEP (All Components)
Jacket ColorMatte Black
Jacket MaterialCablethene FR Polyurethane
Approx LBS/MFT44
AWG Size1. 28 AWG x3, 2. 22 AWG x2, 3. 28 AWG x3
Cond. MaterialTin Plated Copper (All Components)
Conductor Stranding1. 7/36, 2. 19/34, 3. 7/36
Drain Wire28 AWG Tine Plated Copper between shield material 1 & 2
Insul. Material1. Extruded FEP, 2 & 3. Extruded ETFE
Jacket ColorMatte Black
Jacket MaterialFR Cablethene
AWG Size1. 30 AWG, 2. 24 AWG
Cond. MaterialSilver Plated Copper (All Components)
Conductor Stranding1. 7/36, 2. 19/34
Insul. MaterialExtruded ETFE
Jacket ColorMatte Black
Jacket MaterialFR Cablethane
Max. Temp90C
Min. Temp-55C
Overview of Defense Link Cables
High-Speed Data Transmission
Defense Link Cables set a new standard for data transfer, supporting speeds up to 10 gigabits per second, facilitating rapid and efficient communication critical in military operations.
Robust Physical Properties
With superior construction designed for durability, these cables offer exceptional scrape, abrasion, and dynamic cut-through resistance, ensuring they withstand demanding conditions without sacrificing functionality.
Advanced Protection and Durability
Superior EMI and RFI Shielding
One of the standout features is the cable’s advanced electromagnetic interference (EMI) and radio-frequency interference (RFI) protection. This ensures secure, uninterrupted communication in environments where electromagnetic disruption is a concern.
Enhanced Flex-Life
Defense Link Cables are engineered to endure frequent movements and bending, maintaining their integrity over time, which is crucial for dynamic military environments.
Ease of Use and Environmental Compliance
Lightweight and Flexible Design
The cables are designed to be both lightweight and flexible, simplifying installation and handling, thereby reducing assembly time and logistical challenges.
Environmental Standards Compliance
Meeting REACH and RoHS standards, Defense Link Cables adhere to strict regulations on hazardous substances, making them a responsible choice for military use.
Technical Specifications and Design Benefits
Temperature Performance Range
These cables are built to perform across a wide range of temperatures, with specifications for various materials like Fluoropolymer insulation, Cablethane®, Cableprene®, and Modified XLPO.
Support for SWaP-C and C5ISR Initiatives
Defense Link Cables align with SWaP-C (Size, Weight, Power, Cost, Cooling) and C5ISR (Command, Control, Communications, Computers, Cyber, Intelligence, Surveillance, Reconnaissance) initiatives, enhancing the operational efficiency of defense systems.
Compliance and Customization Options
Industry Standards Compliance
They comply with MIL-STD-810H, FAR 25.853, Airbus ABD0031, and Boeing Smoke & Toxicity standards, ensuring reliability and safety in applications.
Versatile Design Options
Available in a variety of conductor materials, insulation types, shield configurations, and jacketing materials, these cables offer extensive customization to meet specific operational needs.
Defense Link Cables represent a pinnacle in cable technology, providing a reliable, versatile solution for data transfer and communication within the military and defense sectors. Their exceptional performance characteristics and compliance with industry standards make them a prime choice for modern military applications. For more information or to discuss your specific needs, contact your Allied Wire and Cable representative today.
