LMR-400

This Times Microwave LMR cable is ideal for use in jumper assemblies in wireless communications systems or as a drop-in replacement for RG8/9913 air-dielectric type cable. It is also suitable for use in short antenna feeder runs. This coax cable is applicable in applications that require an easily-routed, flexible low-loss RF cable (ex. WLL, GPS, LMR, WLAN, WISP, WiMax, SCADA, Mobile Antennas).

LMR 400 Coax Cable Specifications

LMR 400 Construction:

• Inner Conductor: Solid Bare Copper Coated Aluminum
• Dielectric: Foam Polyethylene (FPE)
• Outer Conductor: Aluminum Tape
• Outer Braid: Tinned Copper
• Jacket: Specified per part, see chart below

LMR 400 Ratings:

• Temperature:
  • Installation: -40°C to 85°C
  • Storage: -70°C to 85°C
  • Operating: -40°C to 85°C
• Voltage Rating: 2500 volts
• UL/NEC Type CMR (LMR-400-FR and LMR-400-FR-PVC only)
• CSA FT4 (LMR-400-FR and LMR-400-FR-PVC only)
• RF Shielding: 50 dB greater than a typical single shielded coax (40 dB) - multi-ply bonded foil outer conductor rated conservatively at 90 dB
• Carries MSHA-P rating for mining operations
• Meets FAA FAR25 requirements

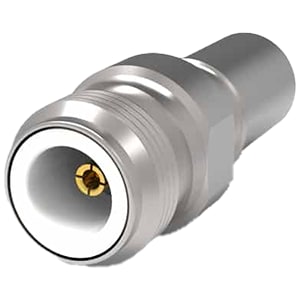

LMR connectors are manufactured by Times Microwave for the LMR-400 cable. These Times Microwave LMR 400 connectors are available in a wide selection of common interface types, including 7-16 DIN, Mini-UHF, UHF Male, BNC Male, N Female, N Male, SMA Male, and more. LMR 400 connectors that we carry include straight jack, straight plug, right angle, bulkhead jack, and reverse polarity connectors. These connectors feature either solder or non-solder center pins. Most LMR-400 connectors include a crimp outer attachment in standard hex crimp sizes.

Construction of LMR 400 Coax Connectors:

• Description: Straight Jack, Right Angle, Straight Plug, Bulkhead Jack or Reverse Polarity (see part specs for full details)
• Interface: 7-16 DIN Female, 7-16 DIN, 7-16 DIN Male, BNC Male, HN Male, QDS Male, UHF Male, Mini-UHF, N Female, N Male, SMA Male, TNC Female, TNC Male (see LMR 400 connector part specs below)
• Inner Contact Attach: Solder or Spring Finger (see part specs for full details)
• Outer Contact Attach: Crimp or Clamp (see part specs for full details)
• Finish Body/Pin: Silver/Silver, Alballoy/Silver, Alballoy/Gold, Nickel/Silver, Silver/Gold, Nickel/Gold, Stainless Steel/Gold
• Coupling Nut: Hex, Knurl, Hex/Knurl
• See the datasheet below and individual LMR 400 coax connector part specs for more info.

LMR400 Standard Connectors:

• EZ-400-NF-X
• EZ-400-NMH-X
• TC-400-NMC
• TC-400-NMH-X
• TC-400-TM-XC
• View more LMR400 connectors here

See the datasheet below and individual LMR 400 coaxial cable specifications for full details.

Loss of Attenuation Specifications by Frequency

Power Handling by Frequency
