LMR-600

LMR 600 Cable

The LMR 600 cable is one of the many low-loss coaxial cables we carry at Allied Wire and Cable. This cable features a bare copper tube inner conductor and an aluminum tape outer conductor. This outer conductor enables the tightest bend radius of any cable of similar size and performance. It also features a foam PE dielectric and a tinned copper braid. The LMR 600 is designed for outdoor exposure, is UV resistant, and has a life expectancy of over 20 years.

21 items

Grid List Table
  • EZ-600-TM-RP
    EZ-600-TM-RP
    EZ-600-TM-RP
    $0.00 /
    • Approx LBS/MFT: 112.00
    • Connector Type: Reverse Polarity
    • Contact Attach (Inner): Spring Finger
    Order
    Add to List

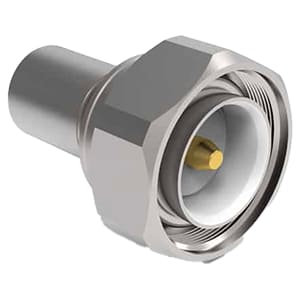

  • TC-600-716M-RA-D
    TC-600-716M-RA-D
    TC-600-716M-RA-D
    $0.00 /
    • Approx LBS/MFT: 362.00
    • Connector Type: Right Angle
    • Contact Attach (Inner): Solder
    Order
    Add to List
  • TC-600-716M-X
    TC-600-716M-X
    TC-600-716M-X
    $0.00 /
    • Approx LBS/MFT: 191.00
    • Connector Type: Straight Plug
    • Contact Attach (Inner): Solder
    Order
    Add to List

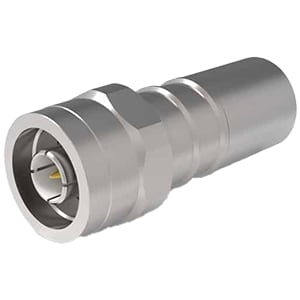

  • TC-600-HNMC
    TC-600-HNMC
    TC-600-HNMC
    $0.00 /
    • Approx LBS/MFT: 250.00
    • Connector Type: Straight Plug
    • Contact Attach (Inner): Solder
    Order
    Add to List
  • TC-600-LCM
    TC-600-LCM
    TC-600-LCM
    $0.00 /
    • Approx LBS/MFT: 1200.00
    • Connector Type: Straight Plug
    • Contact Attach (Inner): Solder
    Order
    Add to List
  • TC-600-NF-X
    TC-600-NF-X
    TC-600-NF-X
    $0.00 /
    • Approx LBS/MFT: 76.00
    • Connector Type: Straight Jack
    • Contact Attach (Inner): Solder
    Order
    Add to List

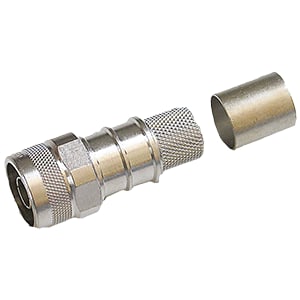

  • TC-600-NMH-75-50
    TC-600-NMH-75-50
    TC-600-NMH-75-50
    $0.00 /
    • Approx LBS/MFT: 130.00
    • Connector Type: Straight Plug
    • Contact Attach (Inner): Solder
    Order
    Add to List
  • TC-600-NMH-RA-D
    TC-600-NMH-RA-D
    TC-600-NMH-RA-D
    $0.00 /
    • Approx LBS/MFT: 185.00
    • Connector Type: Right Angle
    • Contact Attach (Inner): Solder
    Order
    Add to List

LMR 600 connectors are specifically designed for LMR-600 cable in a large variety of common interface types. Available options include 7/8 EIA, 7-16 DIN Female, N Female, N Male, UHF Male and more. LMR-600 connectors are offered in a wide selection of connector types, including flange, straight jack, right angle and reverse polarity. LMR 600 coax connectors can be found with either a solder or non-solder center pin, and utilize a crimp outer attachment in standard hex crimp sizes.

LMR 600 Coax Cable Specifications

LMR 600 Construction:

  • Inner Conductor: Solid Bare Copper Coated Aluminum
  • Dielectric: Foam PE (Polyethylene)
  • Outer Conductor: Aluminum Tape
  • Outer Braid: Tinned Copper

LMR 600 Ratings:

  • Temperature:
    • Installation: -40°C to 85°C
    • Storage: -70°C to 85°C
    • Operating: -40°C to 85°C
  • The LMR 600 diameter ratios and dielectric constant help determine the characteristic impedance. LMR 600 cable is 50-ohm coax.
  • RF Shielding: 50 dB greater than typical single shielded coax (40 dB) - multi-ply bonded foil outer conductor rated conservatively at >90 dB

LMR 600 Applications:

  • Jumper assemblies in wireless communications systems
  • Short antenna feeder runs
  • LMR 600 Coax Cable may be used in any application (ex. WLL, GPS, LMR, WLAN, WISP, WiMax, SCADA, Mobile Antennas) requiring easily-routed, low-loss RF cable

LMR 600 Standard Connectors:

Construction of LMR 600 Coax Connectors:

  • Description: Flange, Straight Jack, Straight Plug, Right Angle, Bulkhead Jack or Reverse Polarity (see part specs for full details)
  • Inner Contact Attach: Spring Finger or Solder (see part specs for full details)
  • Outer Contact Attach: Crimp or Clamp (see part specs for full details)
  • See chart below and individual LMR 600 Coax Connector part specs for more info.
