TCOM-600 Cable
The TCOM-600 Cable is a flexible, low-loss coaxial cable. It features a solid bare copper inner conductor and an SPC strip braid outer conductor, which enables the tightest bend radius of any cable of similar size and performance. This cable also has a foam PE dielectric, a tinned copper braid over an aluminum tape, and a PUR jacket. This cable is a low-smoke zero-halogen cable. It is also flame retardant, UV resistant, and has a maximum temperature of 85°C. The TCOM-600 cable features the lowest loss of any flexible cable and is suitable for outdoor use.
12 items
-
TC-600-NFC-BH$0.00 /
- Approx LBS/MFT: 214.00
- Connector Type: Bulkhead Jack
- Contact Attach (Inner): Solder
-
TC-600-NMC$0.00 /
- Approx LBS/MFT: 208.00
- Connector Type: Straight Plug
- Contact Attach (Inner): Solder
-

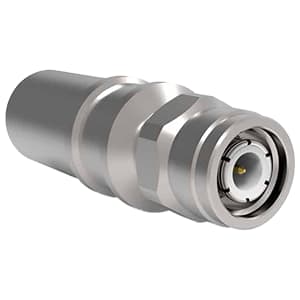

TC-600-TM-X$0.00 /
- Approx LBS/MFT: 100.00
- Connector Type: Straight Plug
- Contact Attach (Inner): Solder
-

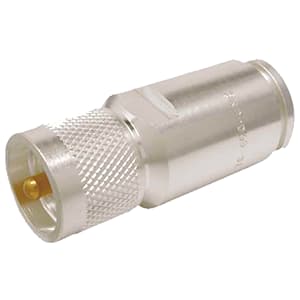

TC-600-UMC$0.00 /
- Approx LBS/MFT: 198.00
- Connector Type: Straight Plug
- Contact Attach (Inner): Solder
TCOM-600 Coax Cable Specifications
TCOM-600 Construction:
- Inner Conductor: Solid Bare Copper Clad Aluminum
- Dielectric: Foam Polyethylene (FPE)
- Outer Conductor: SPC Strip Braid
- Outer Braid: Tinned Copper Braid over Aluminum Tape
- Outer Jacket: Polyurethane (PUR) outer jacket for multiple bending/flexing cycles in rugged applications
TCOM-600 Ratings:
- Temperature:
- Installation: -40°C to 85°C
- Storage: -70°C to 85°C
- Operating: -40°C to 85°C
- UL/NEC and CSA ratings: CMR and FT4
- Passive Intermod: Lower than -155 dBc- Exceeds performance levels for most wireless applications
- RF Shielding: 60 dB greater than typical single shielded coax (40 dB) - multi-ply bonded foil outer conductor rated conservatively at 100 dB
TCOM-600 Applications:
- -155 dBc Intermodulation Distortion
- Low Loss UHF/Microwave Interconnect
- Wireless Base Station Interconnect
- Flexible for Easy Routing
