M16878/27 — Type EE
Our M16878/27 hook-up wire is a durable Mil-Spec wire. It is constructed of a stranded nickel-plated copper conductor and extruded PTFE insulation. This wire has a temperature range of -65°C to +260°C and a voltage rating of 1000V.
34 items
-
M16878/28BFE$0.00 / 1000 FT
- Approx LBS/MFT: 0.00
- AWG Size: 22
- Cond. Material: Nickel-Plated Copper
-
M16878/27BGB$0.00 / 1000 FT
- Approx LBS/MFT: 5.83
- AWG Size: 20
- Cond. Material: Nickel-Plated Copper
-

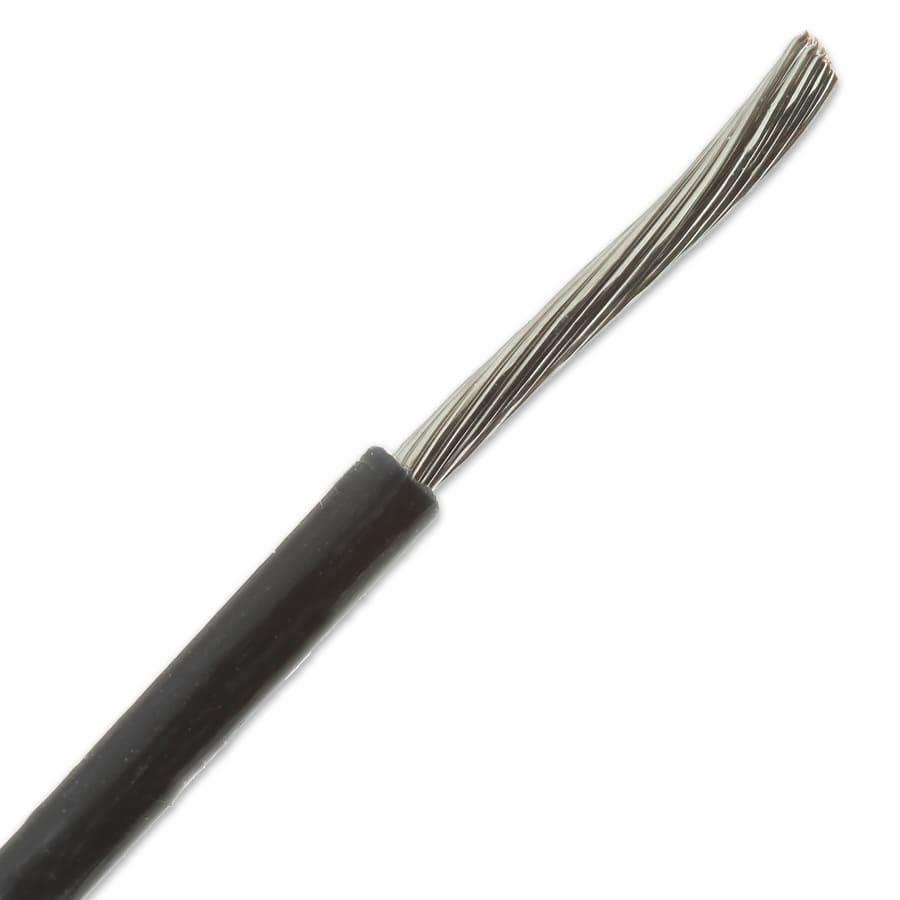

M16878/27BGE$0.00 / 1000 FT
- Approx LBS/MFT: 6.18
- AWG Size: 20
- Cond. Material: Nickel-Plated Copper
-
M16878/28BGB$0.00 / 1000 FT
- Approx LBS/MFT: 5.83
- AWG Size: 20
- Cond. Material: Nickel-Plated Copper
-
M16878/28BGE$0.00 / 1000 FT
- Approx LBS/MFT: 6.18
- AWG Size: 20
- Cond. Material: Nickel-Plated Copper
-
M16878/27BHB$0.00 / 1000 FT
- Approx LBS/MFT: 8.33
- AWG Size: 18
- Cond. Material: Nickel-Plated Copper
-

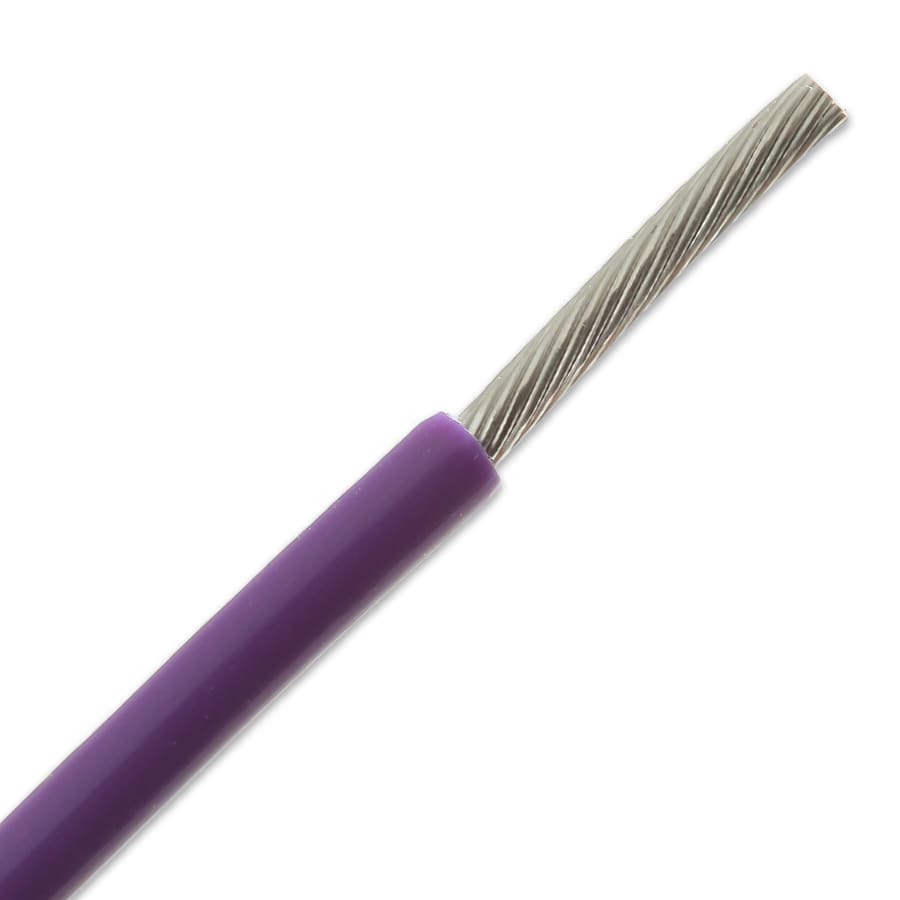

M16878/27BHE$0.00 / 1000 FT
- Approx LBS/MFT: 8.52
- AWG Size: 18
- Cond. Material: Nickel-Plated Copper
-
M16878/28BHB$0.00 / 1000 FT
- Approx LBS/MFT: 8.33
- AWG Size: 18
- Cond. Material: Nickel-Plated Copper
M16878/27 Mil-Spec Hook-Up Wire Specifications
M16878/27 Construction:
- Conductor: Nickel Coated Conductor
- Insulation: Extruded PTFE, .015" Nominal Wall Thickness
M16878/27 Ratings and Approvals:
- Temperature Range: -65°C to 260°C
- Voltage Rating: 1000 volts
- Mil Spec: Mil-DTL-16878G
- Nema: NEMA HP3
*Per specification, this product will have splices. If continuous lengths are needed, please ask.
