Approx LBS/MFT23
AWG Size12
Cond. MaterialSilver-Coated Copper
Conductor Stranding19/25
Insul. MaterialPolytetrafluoroethylene (PTFE)
M27500 ComponentRC
Max O.D. (in)0.114
Max. Temp200C
M22759/11
M22759/11 and AS22759/11 Hook-Up Wire

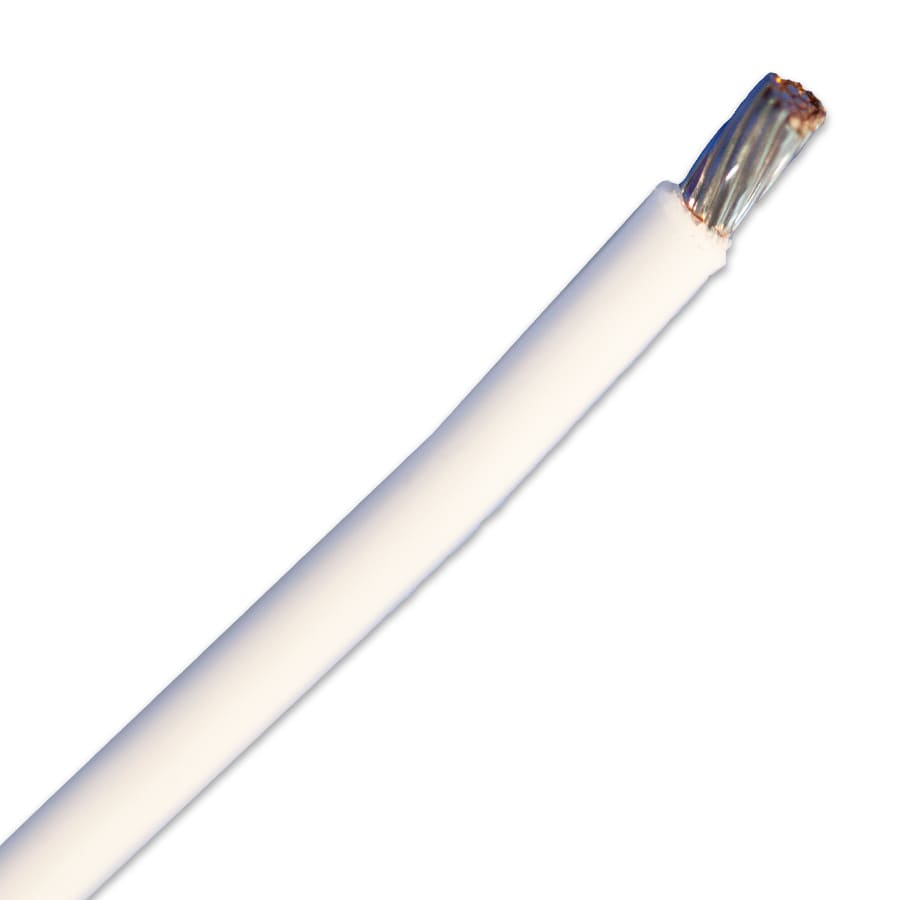

Our M22759/11 wire is a highly durable Mil-Spec wire suitable for use in aircraft and aerospace applications. This wire features silver-plated copper conductors and extruded PTFE insulation. M22759/11 wire has a green or white print on the insulation for identification purposes. It also has a maximum temperature of +200°C and a voltage rating of 600V. While this cable is labeled after the Mil-W-22759 Military specification, this spec is now governed by the SAE and is officially known as AS22759/11.
11 items
Approx LBS/MFT35
AWG Size10
Cond. MaterialSilver-Coated Copper
Conductor Stranding37/26
Insul. MaterialPolytetrafluoroethylene (PTFE)
M27500 ComponentRC
Max O.D. (in)0.143
Max. Temp200C
Approx LBS/MFT66
AWG Size8
Cond. MaterialSilver-Coated Copper
Conductor Stranding133/29
Insul. MaterialPolytetrafluoroethylene (PTFE)
M27500 ComponentRC
Max O.D. (in)0.206
Max. Temp200C
This Mil-Spec Aerospace Cable is self-extinguishing and will not solder. M22759/11 is ideal for applications where reliability and high temperatures are a concern. The PTFE insulation has strong resistance to smoke emissions, vibration, and cut-through. It also offers abrasion resistance, thermal stability, and overload stability. M22759/11 cable is lightweight due to its thin wall. Allied Wire and Cable offers a variety of AS22759 cables, including standard wall and heavy wall versions. View our full catalog here or contact us with any concerns!
M22759/11 Mil-Spec Wire Specifications
M22759/11 Construction:
| Conductor | Silver Plated Copper |
| Insulation | PTFE non-stick coating with .010 nominal wall thickness |
M22759/11 Ratings and Approvals:
| Voltage Rating | 600 volts |
| Temperature Rating | -55°C — +200°C |
| SAE | AS22759/11 |
