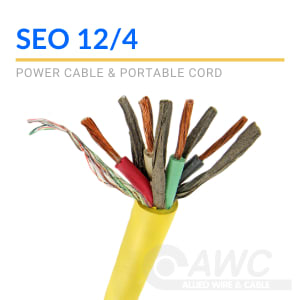

SEO 12/4

SEO 12/4
$0.00 / 100 FT
SEO 12/4
  • Amps: 20
  • Approx LBS/MFT: 242.00
  • AWG Size: 12
  • Color Code Chart: 12
  • Cond. Material: Bare Copper
  • Conductor Stranding: 65/30
  • CSA Type: STOOW
  • Insul. Material: Thermoplastic Elastomer (TPE)
  • Jacket Material: Thermoplastic Elastomer (TPE)
  • Max. Temp: 105C
  • Min. Temp: -50C
  • No. of Cond.: 4
  • No. of Strands: 65
  • Nom. Insul. Thick. (in): 0.045
  • Nom. O.D. of Cable (in): 0.645
  • Strand Size: 30
  • UL Style: SEOW
  • Voltage: 600

Our SEO 12/4 wire is part of our line of power cable and portable service cords. This 12 AWG, 20 AMPS, multi-conductor cable features 65/30 strands, thermoplastic elastomer insulation, a TPE jacket, and an overall bare copper conductor material. It also has a temperature range of -50°C to 105°C, a voltage rating of 600V, 0.045 nominal insulation thickness, an outer diameter of 0.645 inches and weighs approximately 242 lbs. This cable meets UL style SEOW and CSA type STOOW standards. View full product specifications and approvals in the table to the right.

Submit an RFQ and An experienced AWC sales rep will contact you within 24 hours during the business week to help meet your purchasing needs.
