Our CL2 Thermostat Cable is suitable for use in a wide range of low-voltage applications. These include thermostat control, annunciator system, intercoms, burglar systems, and more. This cable features a solid bare copper conductor, PVC insulation, and a PVC jacket. It has a maximum temperature of +60°C and a 150V voltage rating.

18 items

  • THERMOSTAT 18/8
    $0.00 / 1000 FT
    • Approx LBS/MFT: 53.00
    • AWG Size: 18
    • Color Code Chart: 13
    View Details

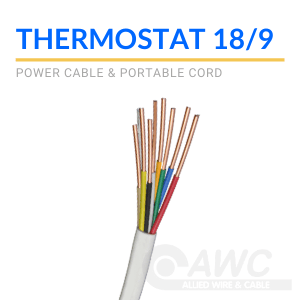

  • THERMOSTAT 18/9
    $0.00 / 1000 FT
    • Approx LBS/MFT: 59.00
    • AWG Size: 18
    • Color Code Chart: 13
    View Details

CL2 Thermostat Cable Specifications

CL2 Construction:

  • Conductors: Solid Bare Copper, 18 and 20 AWG
  • Insulation: PVC or Polypropylene insulation, color-coded for thermostat cable
    • Color Code Chart for Thermostat Cable

      Wire Color Wire Color Wire Color
      1st White 5th Yellow 9th Purple
      2nd Red 6th Brown 10th Grey
      3rd Green 7th Orange
      4th Blue 8th Black
  • Jacket: White or Brown Polyvinylchloride (PVC)

CL2 Ratings and Approvals:

  • UL Listed Type CL2, Power Limited Article 725
  • CM - Communication Cables per Article 800 (18 AWG only)
  • FPL - Power Limited Fire Protective Signaling Cable per Article 760 (18 AWG only)
  • CSA CMG
  • Temperature Rating: 60°C
  • Voltage Rating: 150 volts
