184-22207
- Color: White
- Height (in): 4.07
- Length (ft): 7
- Material: Polyvinylchloride - Rigid Extrusion Grade
- Operating Temp.: 122F (50C)
- Width (in): 4

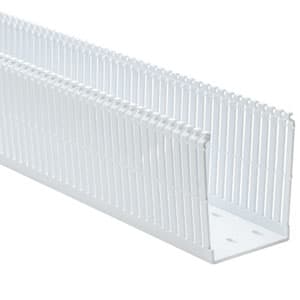

184-22207 — HellermannTyton Slotted Wall Wiring Duct
HellermannTyton High Density Slotted Wall Wiring Duct, 4" x 5", Non-Adhesive, PVC, White, 7FT, 70ft/Carton engineered for demanding identification needs in industrial environments. HellermannTyton High-Density Slotted Wall Wiring Duct features narrow fingers equaling a 2-to-1 finger ratio compared to standard slotted wiring duct. With the narrow fingers, compact designs and components are more easily accommodated. Narrow fingers reduce fanning of wires to terminal blocks, providing a neater appearance. Each finger features a double restriction to hold wires in the bottom portion of the duct, simplifying installation. Mounting holes are uniform in size to those in slotted and solid wall duct but are provided every two inches to accommodate compact designs and provide ease of installation. Nonpermanent adhesive allows repositioning prior to final installation.
- Material: Polyvinylchloride - rigid extrusion grade (PVC)
- Operating Temperature: +122F (+50C)
- Length: 7 ft
- Length (metric): 2.13 m
- Width: 4.00 "
- Width (metric): 101.60 mm
- Color: White (WH)
- Storage: Store in a sealed package. Avoid direct heat sources and sunlight. Ideal storage conditions: 73F (22.8C), 50% RH
- Use Conditions: For Indoor Use Only
