184-33002
- Color: Gray
- Height (in): 3.07
- Hole Diameter (in): 2
- Length (ft): 6
- Material: Polyvinylchloride
- Operating Temp.: 122F (50C)
- Width (in): 3
- Width W2 (in): 3
- Width W3 (in): 0.16
- Width W4 (in): 0.4
- Width W5 (in): 2.6
- Width W6 (in): 1

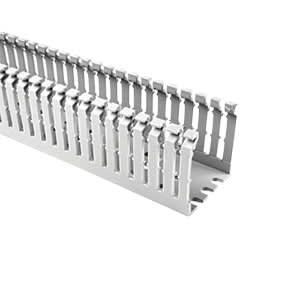

184-33002 — HellermannTyton Slotted Wall Wiring Duct
HellermannTyton High Density Slotted Wall Wiring Duct, 3" x 3", Non-Adhesive, PVC, Gray, 120ft/Carton engineered for demanding identification needs in industrial environments. HellermannTyton High-Density Slotted Wall Wiring Duct features narrow fingers equaling a 2-to-1 finger ratio compared to standard slotted wiring duct. With the narrow fingers, compact designs and components are more easily accommodated. Narrow fingers reduce fanning of the wires to the terminal blocks, presenting a neater appearance. Each finger is provided with a double restriction to hold wires in the bottom portion of the duct, allowing for easier installation. Mounting holes are uniform in size and are offered every 2 inches to accommodate compact designs and ease installation. Optional covers snap on and off easily, and are provided with a non-slip lining that insures the covers remain in place during vibration.
- Material: Polyvinylchloride (PVC)
- Operating Temperature: +122F (+50C)
- Length: 6.0 ft
- Length (metric): 1.83 m
- Width: 3.0 "
- Width (metric): 76.2 mm
- Color: Gray (GY)
- Storage: Store in a sealed package. Avoid direct heat sources and sunlight. Ideal storage conditions: 73F (22.8C), 50% RH
- Use Conditions: For Indoor Use Only
