  • Approx LBS/MFT: 72.00
  • AWG Size: 20
  • Color Code Chart: Black/Red, Black/White, Black/Green, Black/Blue, Black/Yellow, Black/Brown
  • Cond. Material: Bare Copper
  • Conductor Stranding: 7
  • Insul. Material: Polyvinylchloride (PVC)
  • Jacket Material: Polyvinylchloride (PVC)
  • Jacket Thickness: 0.015
  • Max. Temp: 75C
  • NEC Type: CMR
  • No. of Cond.: 6
  • No. of Strands: 7
  • Nom. Insul. Thick. (in): 0.01
  • Nom. O.D. of Cable (in): 0.323
  • Shield: Overall Foil Shield
  • Shield Coverage: 100%, foil facing out
  • Shield Material: Beldfoil
  • Voltage: 300

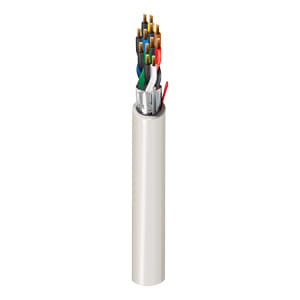

Belden 5445FE CMR Security and Alarm Cable - 20 Gauge 6 Conductor

Our Belden 5445FE 20 gauge cable is part of our Security and Alarm Cable line of Wire and Cable. Belden 5445FE is an NEC Type CMR Cable per NEC Article 800 and also holds a CEC CMG FT4 rating. These cables are composed of 6 - 7 stranded bare copper conductors with an overall shield of beldfoil, and polyvinylchloride (PVC) insulation and jacket materials. The pairs in these cables are color-coded according to black/red, black/white, black/green, black/blue, black/yellow, black/brown with a grey jacket. Rated for up to 300 volts, these cables have a maximum temperature of 75°C and weigh approximately 72 LBS/MFT. Belden 5445FE is ripcord with sequential footage markings every 2 ft. Applications for 20 gauge Belden 5445FE include commercial use, security, intercom and PA, sound and audio systems, and power-limited controls.
