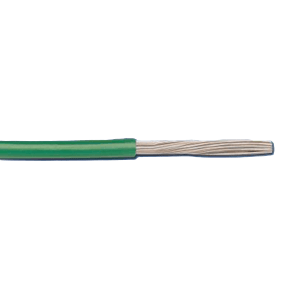

Alpha EcoWire is the latest advancement in environmentally friendly hook-up wire. EcoWire is RoHS and WEEE compliant, meaning it does not contain any hazardous substances and, therefore, can be easily recycled. Alpha EcoWire is designed with modified polyphenylene ether (mPPE) thermoplastic, a non-halogenated insulation absent of any heavy metal pigments. When compared to PVC, mPPE is a lighter, tougher and more durable option.

12 items

Alpha EcoWire Specifications:

  • Conductor: Stranded or Solid Tinned Copper
  • Insulation: Modified Polyphenylene Ether (mPPE)
  • Voltage: 600V
  • Temperature Range: -40°C to 105°C
  • Available Colors: White, Black, Red, Green, Yellow, Blue, Brown, Orange, Slate, Violet, Yellow/Green

Alpha EcoWire Approvals:

  • UL AWM 11028
  • RoHS Compliant
  • REACH compliant
  • WEEE compliant
  • Passes UL VW-1, CSA FT1 Flame Tests

Alpha EcoWire Electrical Characteristics:

  • Better dielectric strength
  • Wide temperature range that meets VW-1
  • Low specific gravity
  • More durable with up to 10x better abrasion and pinch resistance
  • Up to 45% smaller diameter and up to 40% lighter
  • A more environmentally friendly cable alternative to standard PVC hook-up wire
  • Fully recyclable
