7 items

  • Belden Cable
    1858A
    $0.00 / 100 FT
    • Approx LBS/MFT: 157
    • AWG Size: 15
    • Cond. Material: Bare Copper
    View Details
  • Belden Cable
    1859A
    $0.00 /
    • Approx LBS/MFT: 134
    • AWG Size: 15
    • Cond. Material: Bare Copper
    Order
    Add to List

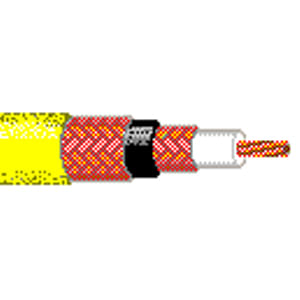

  • Belden Cable
    9192
    $0.00 /
    • Approx LBS/MFT: 150
    • AWG Size: 15
    • Cond. Material: Bare Copper
    Order
    Add to List
  • Belden Cable
    9232
    $0.00 /
    • Approx LBS/MFT: 145
    • AWG Size: 15
    • Cond. Material: Bare Copper
    Order
    Add to List
  • Belden Cable
    7803A
    $0.00 /
    • Approx LBS/MFT: 123
    • AWG Size: 14
    • Cond. Material: Bare Copper
    Order
    Add to List
  • Belden Cable
    8233
    $0.00 / 100 FT
    • Approx LBS/MFT: 122
    • AWG Size: 14
    • Cond. Material: Bare Copper
    Order
    Add to List
  • $0.00 /
    • Approx LBS/MFT: 136
    • AWG Size: 14
    • Cond. Material: Bare Copper
    Order
    Add to List

Belden RG11U Video Triax Cable Specifications

RG11U Video Triax Ratings and Approvals:

  • 75 Ohm Cable
  • Temperature Ratings:
    • Non-Plenum: 75°C or 80°C
    • Plenum: 125°C
  • UL AWM Style 1641: 30V, 75°C – these parts also pass the VW-1 Flame Test (select parts only)

RG11U Video Triax Construction:

  • Conductor: Bare Copper
  • Insulation:
    • Non-Plenum: Gas-Injected Foam High-Density Polyethylene
    • Plenum: Foam FEP
  • Jacket:
    • Non-Plenum: Polyethylene, PVC, Belflex, or Hypalon
    • Plenum: Fluorocopolymer
  • Shield: Double Bare Copper Braid (insulation between braids)
  • *Hypalon-jacketed parts include paper tape separator

RG11U Video Cable Applications:

All of these cables are suitable for outdoor applications. Certain parts may be used in aerial applications when supported by a messenger wire. Select parts may be used in direct burial applications. Speak with a sales representative for more information.
