These Belden 600V ACIC Multi-Conductor cables are suitable for use in hazardous environments, including those in the paper and pulp, mining, chemical, and petroleum industries. Other applications for the these flexible control cables include exposed or concealed wiring in wet or dry conditions and in commercial buildings. They also have approval for use in ventilated, non-ventilated, and ladder-type tray cable applications in wet or dry conditions, and for use on walls or beams and in direct burial applications as well. These CSA Control Cables also offer corrosion, moisture, heat, impact, and crush Resistance.

31 items

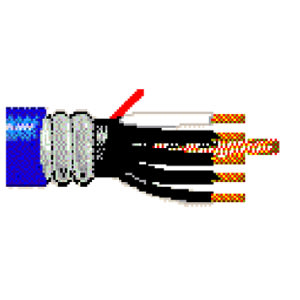

Belden 600V Multi-Conductor ACIC Control Cable Specifications

ACIC Cable Ratings and Approvals:

  • CSA C22.2 #239
  • CSA C22.2 #0.3 Clause 4.31 Low Acid Gas
  • FT4 Flame Test
  • Voltage Rating: 600V
  • Temperature Rating: -40°C to 90°C Dry or Wet
  • Installed: -25°C

ACIC Cable Construction:

  • Conductor: Stranded Bare Copper
  • Insulation: XLPE
  • Armor: Interlocked Aluminum
  • Inner Jacket: PVC
  • RipCord for Inner Jacket
  • Outer Jacket: Blue PVC
  • Ground Wire: Bare Copper

ACIC Cable Features and Benefits:

  • High Tensile Strength
  • Excellent Elongation
  • Good Low-Temperature Properties
  • High Insulation Resistance
  • Low Dielectric Loss
  • High Dielectric Strength
  • Flexibility
  • Does Not Require Conduit or Ducts, Saving Money
