Blue Hose Cable

4 items

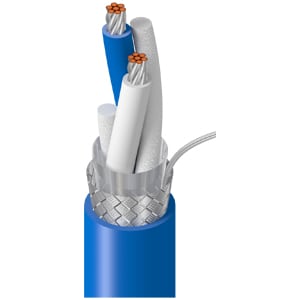

129463
Belden Cable
129463
Approx LBS/MFT122
Armor MaterialAluminum Interlocked Armor (AIA), Interlocked Aluminum
AWG Size20
Color Code ChartClear, Blue
Cond. MaterialTinned Copper
Conductor Stranding7/28
Dielectric (in)0.154
Dielectric MaterialPolyethylene (PE)
Requires Quote per FT
Quote Only

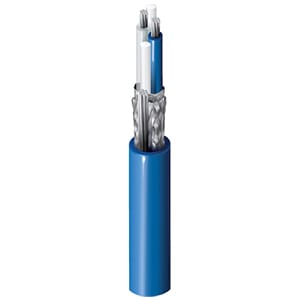

139463
Belden Cable
139463
Approx LBS/MFT220
Armor MaterialGalvanized Steel Interlocked Armor (GSIA), Interlocked Steel
AWG Size20
Color Code ChartClear, Blue
Cond. MaterialTinned Copper
Conductor Stranding7/28
Dielectric (in)0.154
Dielectric MaterialPolyethylene (PE)
Requires Quote
Quote Only
189463
Belden Cable
189463
Approx LBS/MFT129
Armor MaterialContinuously Corrugated Aluminum
AWG Size20
Color Code ChartClear, Blue
Cond. MaterialTinned Copper
Conductor Stranding7/28
Dielectric (in)0.154
Dielectric MaterialPolyethylene (PE)
Requires Quote
Quote Only
89463
Belden Cable
89463
Approx LBS/MFT34
AWG Size20
Color Code ChartClear, Blue
Cond. MaterialTinned Copper
Conductor Stranding7/28
Dielectric (in)0.151
Dielectric MaterialFluorinated Ethylene Propylene (FEP)
Jacket MaterialFluorinated Ethylene Propylene (FEP)
Requires Quote per FT
Quote Only

Belden Blue Hose Industrial Twinax Cable Specifications

Belden Blue Hose Cable Ratings and Approvals:

  • UL Approvals:
    • UL AWM Style 2464 (300V, 80°C)
    • UL AWM Style 2464 (300V, 60°C)
  • NEC and CEC Ratings: vary, see part info

Blue Hose Twinaxial Cable Construction:

  • Conductor: 20 AWG Stranded Tinned Copper
  • Insulation: Polyethylene (non-plenum) or FEP (plenum)
  • Outer Jacket: Blue Sunlight-Resistant PVC, Blue Sunlight-Resistant LDPE, or Blue FEP
  • Inner Jacket: Blue PVC (armored parts only)
  • Shielding: Beldfoil and Tinned Copper Braid Shield
  • Drain Wire: Tinned Copper, select parts only
  • Armor: Aluminum Interlocked, Continuously Corrugated Aluminum, or Steel Interlocked (select parts only, see part info)
  • Color Code: Clear, Blue
