TCOM-400

TCOM-400

The TCOM-400 Cable is a flexible, low-loss coaxial cable. It features a solid bare copper inner conductor and an SPC strip braid outer conductor, which enables the tightest bend radius of any cable of similar size and performance. This cable also has a foam PE dielectric, a tinned copper braid over an aluminum tape, and a PUR outer jacket. The TCOM-400 cable is a low-smoke zero-halogen cable. It is also flame retardant, UV resistant, and has a maximum temperature of 85°C.

TCOM-400 connectors are manufactured by Times Microwave for TCOM-400 low loss passive intermod coax, and are offered in many interface types including: N Male, TNC Male, SMA Male. LMR connectors come with a crimp or clamp outer attachment.

22 items

Grid List Table
  • EZ-400-TM-X
    EZ-400-TM-X
    EZ-400-TM-X
    $0.00 /
    • Approx LBS/MFT: 75.00
    • Connector Type: Straight Plug
    • Contact Attach (Inner): Spring Finger
    Order
    Add to List

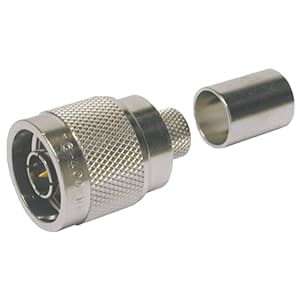

  • SC-400-NM
    SC-400-NM
    SC-400-NM
    $0.00 / 1000 FT
    • Approx LBS/MFT: 90.00
    • Connector Type: Straight Plug
    • Contact Attach (Inner): Solder
    Order
    Add to List
  • TC-400-716-FC
    TC-400-716-FC
    TC-400-716-FC
    $0.00 /
    • Approx LBS/MFT: 281.00
    • Connector Type: Straight Jack
    • Contact Attach (Inner): Solder
    Order
    Add to List
  • TC-400-716-MC
    TC-400-716-MC
    TC-400-716-MC
    $0.00 /
    • Approx LBS/MFT: 268.00
    • Connector Type: Straight Plug
    • Contact Attach (Inner): Solder
    Order
    Add to List

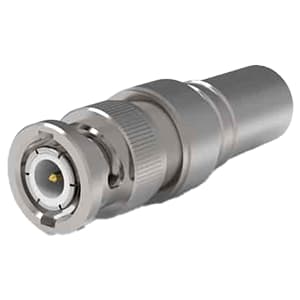

  • TC-400-BM
    TC-400-BM
    TC-400-BM
    $0.00 /
    • Approx LBS/MFT: 63.00
    • Connector Type: Straight Plug
    • Contact Attach (Inner): Solder
    View Details
  • TC-400-MUHF
    TC-400-MUHF
    TC-400-MUHF
    $0.00 /
    • Approx LBS/MFT: 20.00
    • Connector Type: Straight Plug
    • Contact Attach (Inner): Solder
    Order
    Add to List
  • TC-400-NFC
    TC-400-NFC
    TC-400-NFC
    $0.00 /
    • Approx LBS/MFT: 119.00
    • Connector Type: Straight Jack
    • Contact Attach (Inner): Solder
    Order
    Add to List
  • TC-400-NFC-BH (A)
    TC-400-NFC-BH (A)
    TC-400-NFC-BH (A)
    $0.00 /
    • Approx LBS/MFT: 145.00
    • Connector Type: Bulkhead Jack
    • Contact Attach (Inner): Solder
    Order
    Add to List

TCOM-400 Coax Cable Specifications

TCOM-400 Construction:

  • Inner Conductor: Solid Bare Copper Clad Aluminum
  • Dielectric: Foam Polyethylene (FPE)
  • Outer Conductor: SPC Strip Braid
  • Outer Braid: Tinned Copper Braid over Aluminum Tape
  • Outer Jacket: Polyurethane (PUR) outer jacket for multiple bending/flexing cycles in rugged applications

TCOM-400 Ratings and Approvals:

  • Temperature:
    • Installation: -40°C to 85°C
    • Storage: -70°C to 85°C
    • Operating: -40°C to 85°C
  • UL/NEC and CSA rating: CMR and FT4
  • Passive Intermod: Lower than -155 dBc- Exceeds performance levels for most wireless applications
  • RF Shielding: 60 dB greater than typical single shielded coax (40 dB) - multi-ply bonded foil outer conductor rated conservatively at 100 dB

TCOM-400 Applications:

  • -155 dBc Intermodulation Distortion
  • Low Loss UHF/Microwave Interconnect
  • Wireless Base Station Interconnect
  • Flexible for Easy Routing

Construction of TCOM-400 Coax Connectors:

  • Description: Straight plug, Straight jack, Bulkhead jack, Right angle, Reverse polarity, (see part specs for full details)
  • Inner Contact Attach: Solder or Spring finger (see part specs for full details)
  • Outer Contact Attach: Crimp or Clamp
  • Coupling Nut: Knurl or Hex
  • Finish Body/Pin: S/G, S/S, N/S, N/G, A/G,
  • See chart below or individual TCOM 400 Connector part specs for more info.
