TCOM-400
The TCOM-400 Cable is a flexible, low-loss coaxial cable. It features a solid bare copper inner conductor and an SPC strip braid outer conductor, which enables the tightest bend radius of any cable of similar size and performance. This cable also has a foam PE dielectric, a tinned copper braid over an aluminum tape, and a PUR outer jacket. The TCOM-400 cable is a low-smoke zero-halogen cable. It is also flame retardant, UV resistant, and has a maximum temperature of 85°C.
TCOM-400 connectors are manufactured by Times Microwave for TCOM-400 low loss passive intermod coax, and are offered in many interface types including: N Male, TNC Male, SMA Male. LMR connectors come with a crimp or clamp outer attachment.
22 items
-
EZ-400-716M-X$0.00 /- Approx LBS/MFT: 277.00
- Connector Type: Straight Plug
- Contact Attach (Inner): Spring Finger
-

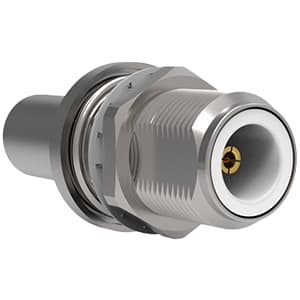

EZ-400-NF-BH$0.00 /
- Approx LBS/MFT: 102.00
- Connector Type: Bulkhead Jack
- Contact Attach (Inner): Spring Finger
-
EZ-400-NF-X$0.00 /
- Approx LBS/MFT: 105.00
- Connector Type: Straight Jack
- Contact Attach (Inner): Spring Finger
-
EZ-400-NMH-RA-X$0.00 /
- Approx LBS/MFT: 177.00
- Connector Type: Right Angle
- Contact Attach (Inner): Spring Finger
-
EZ-400-NMH-X$0.00 /
- Approx LBS/MFT: 103.00
- Connector Type: Straight Plug
- Contact Attach (Inner): Spring Finger
-
EZ-400-NMK$0.00 /
- Approx LBS/MFT: 113.00
- Connector Type: Straight Plug
- Contact Attach (Inner): Spring Finger
-
EZ-400-TF-RP$0.00 /
- Approx LBS/MFT: 74.00
- Connector Type: Reverse Polarity
- Contact Attach (Inner): Spring Finger
-
EZ-400-TM-RP$0.00 /
- Approx LBS/MFT: 74.00
- Connector Type: Reverse Polarity
- Contact Attach (Inner): Spring Finger
TCOM-400 Coax Cable Specifications
TCOM-400 Construction:
- Inner Conductor: Solid Bare Copper Clad Aluminum
- Dielectric: Foam Polyethylene (FPE)
- Outer Conductor: SPC Strip Braid
- Outer Braid: Tinned Copper Braid over Aluminum Tape
- Outer Jacket: Polyurethane (PUR) outer jacket for multiple bending/flexing cycles in rugged applications
TCOM-400 Ratings and Approvals:
- Temperature:
- Installation: -40°C to 85°C
- Storage: -70°C to 85°C
- Operating: -40°C to 85°C
- UL/NEC and CSA rating: CMR and FT4
- Passive Intermod: Lower than -155 dBc- Exceeds performance levels for most wireless applications
- RF Shielding: 60 dB greater than typical single shielded coax (40 dB) - multi-ply bonded foil outer conductor rated conservatively at 100 dB
TCOM-400 Applications:
- -155 dBc Intermodulation Distortion
- Low Loss UHF/Microwave Interconnect
- Wireless Base Station Interconnect
- Flexible for Easy Routing
Construction of TCOM-400 Coax Connectors:
- Description: Straight plug, Straight jack, Bulkhead jack, Right angle, Reverse polarity, (see part specs for full details)
- Inner Contact Attach: Solder or Spring finger (see part specs for full details)
- Outer Contact Attach: Crimp or Clamp
- Coupling Nut: Knurl or Hex
- Finish Body/Pin: S/G, S/S, N/S, N/G, A/G,
- See chart below or individual TCOM 400 Connector part specs for more info.
