The UL1007 PVC hook-up wire is mainly used for the general purpose of the internal wiring of electronic and electrical equipment. Its characteristics include tinned copper conductors, Polyvinyl Chloride (PVC) insulation, and a 300-volt rating. This makes the UL1007 wire suitable for applications in temperatures ranging from 80°C to 105°C.

UL Style AWG Sizes Voltage Rating Temp Rating Thickness Material Remarks
UL 1007 30-16 300 80 degrees Celcius 1/64 PVC Internal wiring of appliances

19 items

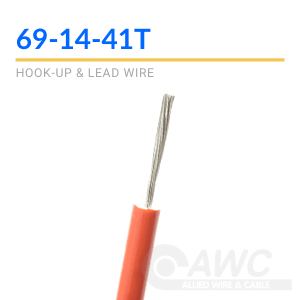

  • 1569-14-41T
    $0.00 / 1000 FT
    • Approx LBS/MFT: 15.6
    • AWG Size: 14
    • Cond. Material: Tinned Copper
    View Details
  • 1569-12-65T
    $0.00 / 1000 FT
    • Approx LBS/MFT: 23
    • AWG Size: 12
    • Cond. Material: Tinned Copper
    View Details

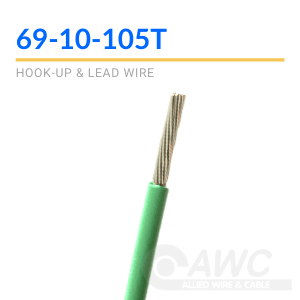

  • 1569-10-105T
    $0.00 / 1000 FT
    • Approx LBS/MFT: 43
    • AWG Size: 10
    • Cond. Material: Tinned Copper
    View Details

UL1007 Wire Specifications

UL1007 Construction
Conductor Stranded Tinned Copper, color-coded
Insulation Polyvinylchloride (PVC), 0.016" nominal insulation thickness
Temperature Range -40°C to +105°C (-40°C cold bend test)
Voltage Rating 300 volts
UL1007 Ratings & Approvals
UL1007 300V 80°C (AWM)
CSA Type TR-64 300V 90°C
Passes UL VW-1 Flame Test
RoHS Compliant
UL1007 Applications
Power Generators
Electric Panels
Electronic Circuits
Dual rated AWM Wire (UL1007 Wire) may be used for the internal wiring of appliances and electronics
Benefits of UL1007 Wire
Resistant to water, oil, acids, solvents, and fungus
Protection against abrasion
Accessible stripping and cutting due to uniform insulation thickness
UL1007 Packaging Options
Custom Reels
Bulk Drums
Custom Lengths
