MIL-DTL-24643/32 (LS2SWAU, LS2SWA)

The M24643/32 cable is a low-smoke, zero-halogen shipboard cable. It is suitable for watertight, non-flexing service. This Mil-Spec cable features paired and stranded bare copper conductors, Cross-Linked Polyethylene (XLPE) insulation, and an LSZH cross-linked Polyolefin (XLPO) jacket. This cable also has individually shielded pairs and an armored option. It is suitable for use in shipboard combat systems, interior communications, lighting, and power applications that do not exceed 600V. The Mil-DTL-24643 Mil-Spec covers cables suitable for use in shipboard, communications, instrumentation, and electronic applications.

20 items

  • LS2SWAU-37
    $0.00 / 1000 FT
    • Approx LBS/MFT: 0.00
    • AWG Size: 22
    • Cond. Material: Bare Copper
    Order
    Add to List
  • LS2SWAU-44
    $0.00 / 1000 FT
    • Approx LBS/MFT: 0.00
    • AWG Size: 22
    • Cond. Material: Bare Copper
    Order
    Add to List
  • LS2SWAU-61
    $0.00 / 1000 FT
    • Approx LBS/MFT: 0.00
    • AWG Size: 22
    • Cond. Material: Bare Copper
    Order
    Add to List

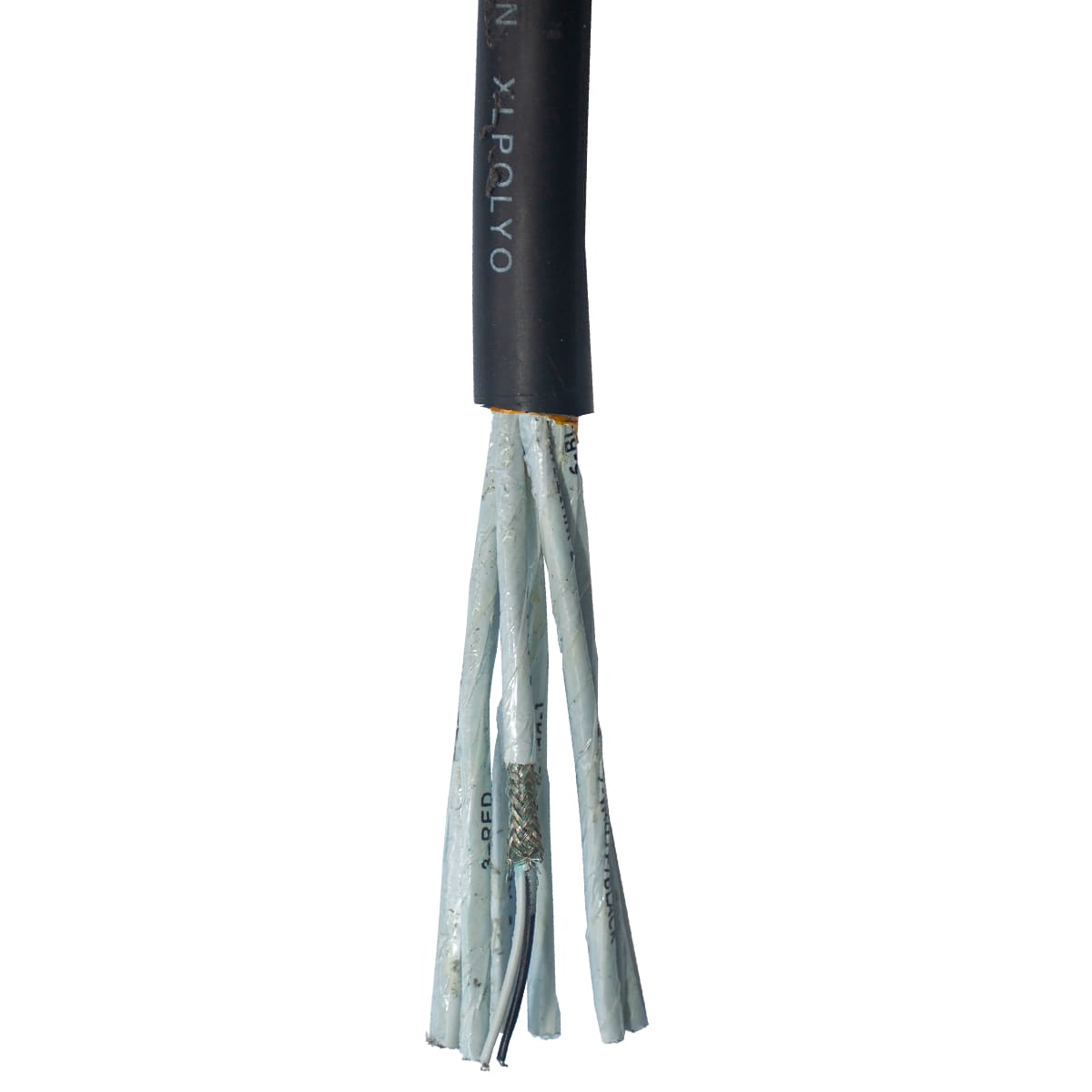

  • LS2SWAU-7
    $0.00 / 1000 FT
    • Approx LBS/MFT: 0.00
    • AWG Size: 22
    • Cond. Material: Bare Copper
    Order
    Add to List

MIL-DTL-24643/32 (LS2SWAU, LS2SWA) Mil-Spec Shipboard Cable Specifications

M24643/32 Construction:

  • Conductor: Stranded Bare Copper, per ASTM B286
  • Insulation: Cross-Linked Polyethylene (XLPE)
  • Jacket: Low-Smoke, Zero-Halogen (LSZH) Cross-Linked Polyolefin (XLPO) (with surface markings)
  • Shield: Tinned Copper Braid, pairs individually shielded
  • Armor (LS2SWA): Aluminum Braid

M24643/32 Ratings and Approvals:

  • Mil-Spec:
    • MIL-DTL-24643
    • MIL-I-45208A
    • MIL-STD-790
  • Navy Shipboard Spec:
    • LS2SWA (armored)
    • LS2SWAU (unarmored)
  • Voltage Rating: 600V
  • Nom. Impedance: 75 ohm
