C-TC+ Control Cable, 600V Multi-Conductor

When installed according to the techniques listed in a C-track cable guide, Belden C-TC+ control cables are ideal for C-track and other extreme flex applications up to 9 million flex cycles. In order to provide such an outstanding flex life, Belden's C-TC+ flex cable features super fine stranding and exceptionally tight lay lengths. Infinity C-TC+ cables are ideal for wind turbines, robots, multi-axis machining, automated assembly systems and material handling systems. These cables are also suitable for use in automated storage systems and gantry systems.

25 items

Belden Cable

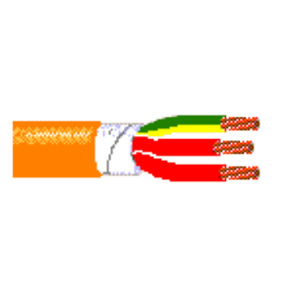

7101A
Approx LBS/MFT47.00
AWG Size20
Color Code ChartRed & Numbered, Green/Yellow Ground
Cond. MaterialBare Copper
Conductor Stranding74/38
CSA TypeAWM I/II A/B
Dielectric MaterialPolyvinylchloride (PVC)
Jacket MaterialPolyvinylchloride (PVC)
Requires Quote
Belden Cable

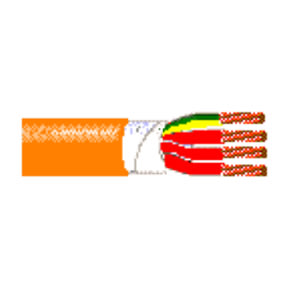

7102A
Approx LBS/MFT0.00
AWG Size20
Color Code ChartRed & Numbered, Green/Yellow Ground
Cond. MaterialBare Copper
Conductor Stranding74/38
CSA TypeAWM I/II A/B
Dielectric MaterialPolyvinylchloride (PVC)
Jacket MaterialPolyvinylchloride (PVC)
Requires Quote
Belden Cable

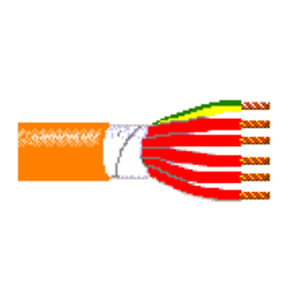

7105A
Approx LBS/MFT0.00
AWG Size20
Color Code ChartRed & Numbered, Green/Yellow Ground
Cond. MaterialBare Copper
Conductor Stranding74/38
CSA TypeAWM I/II A/B
Dielectric MaterialPolyvinylchloride (PVC)
Jacket MaterialPolyvinylchloride (PVC)
Requires Quote
Belden Cable
7106A
Approx LBS/MFT0.00
AWG Size20
Color Code ChartRed & Numbered, Green/Yellow Ground
Cond. MaterialBare Copper
Conductor Stranding74/38
CSA TypeAWM I/II A/B
Dielectric MaterialPolyvinylchloride (PVC)
Jacket MaterialPolyvinylchloride (PVC)
Requires Quote
Belden Cable

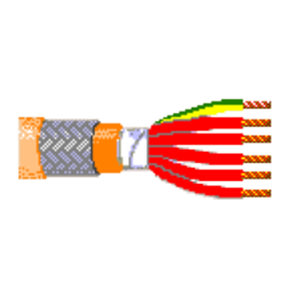

7106AS
Approx LBS/MFT0.00
AWG Size20
Color Code ChartRed & Numbered, Green/Yellow Ground
Cond. MaterialBare Copper
Conductor Stranding74/38
CSA TypeAWM I/II A/B
Dielectric MaterialPolyvinylchloride (PVC)
Inner Jacket Thick. (in)0.025
Requires Quote
Belden Cable
7107A
Approx LBS/MFT0.00
AWG Size20
Color Code ChartRed & Numbered, Green/Yellow Ground
Cond. MaterialBare Copper
Conductor Stranding74/38
CSA TypeAWM I/II A/B
Dielectric MaterialPolyvinylchloride (PVC)
Jacket MaterialPolyvinylchloride (PVC)
Requires Quote
Belden Cable
7108A
Approx LBS/MFT0.00
AWG Size20
Color Code ChartRed & Numbered, Green/Yellow Ground
Cond. MaterialBare Copper
Conductor Stranding74/38
CSA TypeAWM I/II A/B
Dielectric MaterialPolyvinylchloride (PVC)
Jacket MaterialPolyvinylchloride (PVC)
Requires Quote
Belden Cable
7110A
Approx LBS/MFT0.00
AWG Size18
Color Code ChartRed & Numbered, Green/Yellow Ground
Cond. MaterialBare Copper
Conductor Stranding114/38
CSA TypeAWM I/II A/B
Dielectric MaterialPolyvinylchloride (PVC)
Jacket MaterialPolyvinylchloride (PVC)
Requires Quote

Belden C-TC+ Control Cable Specifications

Belden C-TC+ Flex Cable Ratings and Approvals:

  • UL AWM Style 2587 (600V, 90°C)
  • CSA AWM I/II A/B
  • Temperature Rating: -40°C to 90°C (-5°C to 90°C Flexing)

Belden C-TC+ Flex Cable Construction:

  • Conductor: Stranded Bare Copper
  • Insulation: Polyvinylchloride (PVC)
  • Outer Jacket: Orange Oil and Abrasion-Resistant PVC
  • Inner Jacket: Polyvinylchloride (PVC) and Thermoplastic Elastomer (TPE) specified below
  • Shield: Tinned Copper Braid or Unshielded
  • Color Code: Red with Numbers and Green/Yellow Ground
