Belden 9V280XX Series Vari-Twist Flat Cable Specifications

9V280XX Vari-Twist Cable Ratings and Approvals:

  • UL: File #E12683, Style Dual Rated 2693 & 2697
  • Flammability Rating: Passes UL VW1
  • Temperature Rating: -20°C to 105°C
  • Voltage Rating: 300V RMS
  • Current: 1A
  • Impedance: 115 Ohms Balanced, 100 Ohms Unbalanced

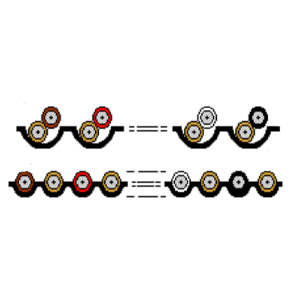

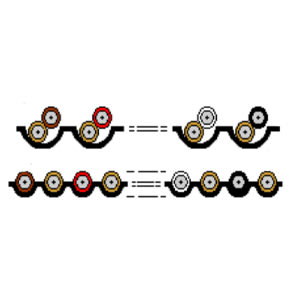

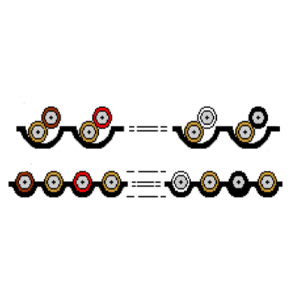

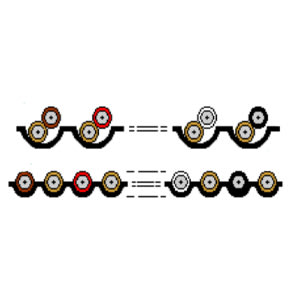

9V280XX Vari-Twist Cable Construction:

  • Conductor: 28 AWG Stranded Tinned Copper
  • Insulation: Color-Coded Polyvinyl Chloride (PVC)
  • Substrate: Clear Polyvinyl Chloride (PVC)
  • Components: 18” of Twisted Pairs, 2” Flat Section
  • Pitch: Twisted Pair Centers = .100” Nom.; Flat Conductor Centers = .050″ ± .005″
  • Color Code: Each pair has one tan and one color-coded conductor. Color pairs for each terminating section: Brown/Tan, Red/Tan, Orange/Tan, Yellow/Tan, Green/Tan, Blue/Tan, Purple/Tan, Gray/Tan, White/Tan, Black/Tan. The sequence repeats as necessary.

9V280XX Vari-Twist Cable Applications:

This cable may be used for internal interconnection wiring or for the internal wiring of electronic equipment. Its twisted pair construction reduces noise for applications in which crosstalk is a concern.
